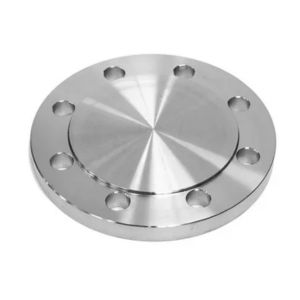

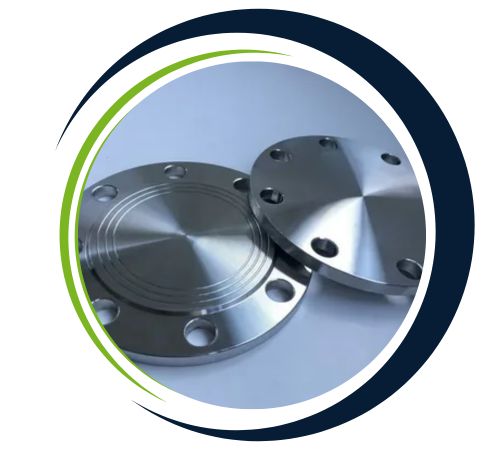

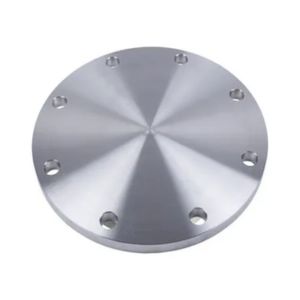

Gugsa Flanges, a trusted manufacturer and supplier based in the industrial heart of Addis Ababa, Ethiopia, is proud to produce API-Type 6BX Blind Flanges rated for pressures up to 10,000 PSI. We specialize in crafting these critical components to the most stringent international standards, ensuring reliability and safety for demanding energy sector operations. Our commitment is to provide the local and regional market with superior-quality flanges, engineered with precision to support the vital infrastructure projects that drive progress across Ethiopia and beyond.

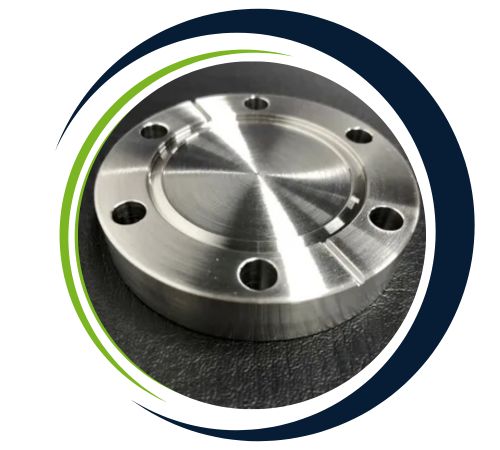

These robust flanges are forged from high-strength carbon or alloy steel, engineered with a specific composition to meet strict API requirements. Their exceptional mechanical properties, including high tensile strength and toughness, allow them to withstand extreme pressures and harsh environmental conditions without compromising integrity. This ensures a permanent, leak-proof seal in high-pressure systems, making them a cornerstone of safe and efficient operations in critical applications.

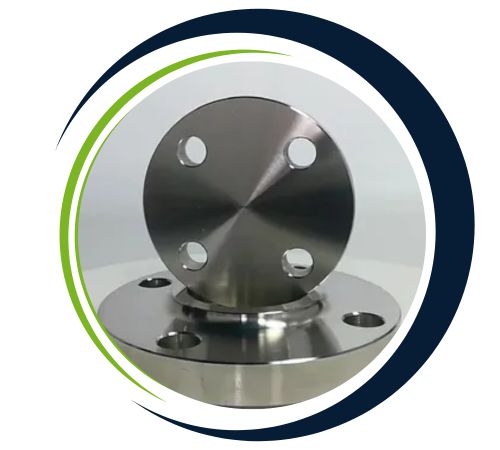

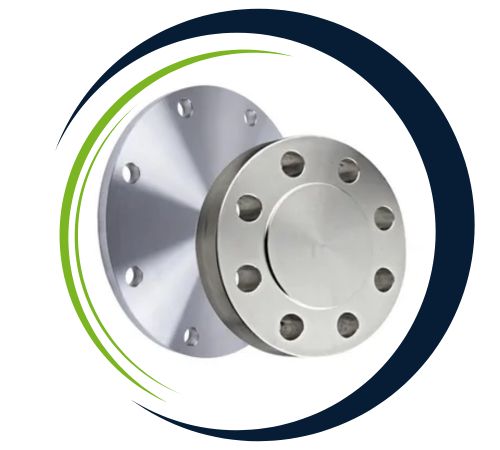

Gugsa Flanges, a leading supplier in Addis Ababa, Ethiopia, offers an extensive selection of API – Type 6BX Blind Flanges 10,000 PSI, including weld neck flanges, slip-on flanges, blind flanges, threaded flanges, and lap joint flanges. Designed for diverse industrial applications, our high-quality inventory and commitment to exceptional service make us a trusted choice for flange products in the region.
| Specification Table Of : | API Type 6BX Flange |
| ADNOC Approved Manufacturer Of Standards | ASME B16.36, DIN, AWWA C207, B16.47 Series A & B, BS1560-3.1, EN-1092, ASME B16.48, API605, BS4504, EN1092, UNI, ISO, MSS S44, IS 2062, ISO70051, API, API7S-43, ANSI/ASME B16.5, API7S-15 |
| Temperature Ratings | 150 LB To 2500 LB |
| Size Chart | (1/2″) To (48″) |
| Manufacturing Process |
|
| Face Type Details | Raised Face, Large Tongue & Large Male-Female And Small Male-Female, Groove And Small Tongue Groove, RTJ, Flat Face, Lap-Joint Face. |
| Forging Materials | Stainless Steel, Alloy Steel, Carbon Steel, Duplex Steel & Super Duplex Steel, Cast Iron, Inconel, Mild Steel, Hastelloy, Copper Nickel, Wrought Iron. |
| Thickness | NPS ≤ 18 |
| Flanges High Temperature | Above 200° Celsius (400°F) For 150 Class Or Above 400° Celsius (750°F) |
| JIS Standards | 5K, 10K, 40K, 16K 20K 30K, 63K |
| Our Top Selling Products | Lap Joint, Socket-Weld, Blind, Threaded, Weld Neck, Slip-On |
| Buy Flanges For Pipe Connection | Power Plants Industry Food Processing And Manufacturing Waterworks Systems Nuclear Power Application Municipal Pipe Systems Fossil Fuel Power Plants Oil And Gas Industry |
| Type Of Making Format | Plate /Forged/ Threaded |
| Bore Diameter | NPS ≤ 10 |
| Size | B | OD | C | E1 | Q | G | K | T | J1 | J2 | J3 | J4 | R | BC | N | H | BX |
| 1 13/16″ | 46.8 | 185 | 3 | – | 5.56 | 77.77 | 105 | 42.1 | 88.9 | 65.1 | 48.5 | – | 10 | 146.1 | 8 | 23 | 151 |
| 2 1/16″ | 53.2 | 200 | 3 | – | 5.95 | 86.23 | 111 | 44.1 | 100 | 74.7 | 51.6 | – | 10 | 158.8 | 8 | 23 | 152 |
| 2 9/16″ | 65.9 | 230 | 3 | – | 6.75 | 102.77 | 132 | 51.2 | 120.7 | 92.1 | 57.2 | – | 10 | 184.2 | 8 | 26 | 153 |
| 3 1/16″ | 78.6 | 270 | 3 | – | 7.54 | 119 | 152 | 58.4 | 142.1 | 110.2 | 63.5 | – | 10 | 215.9 | 8 | 29 | 154 |
| 4 1/16″ | 104 | 315 | 3 | – | 8.33 | 150.62 | 185 | 70.3 | 182.6 | 146.1 | 73.1 | – | 10 | 258.8 | 8 | 32 | 155 |
| 5 1/8″ | 131 | 360 | 3 | 9.5 | 9.53 | 176.66 | 221 | 79.4 | 223.8 | 182.6 | 81 | 6.4 | 10 | 300 | 12 | 32 | 169 |
| 7 1/16″ | 180.2 | 480 | 6 | 11.1 | 11.11 | 241.83 | 302 | 103.2 | 301.6 | 254 | 95.3 | 9.7 | 16 | 403.2 | 12 | 42 | 156 |
| 9 “ | 229.4 | 550 | 6 | 12.7 | 12.7 | 299.06 | 359 | 123.9 | 374.7 | 327.1 | 93.7 | 9.7 | 16 | 476.3 | 16 | 42 | 157 |
| 11″ | 280.2 | 655 | 6 | 14.3 | 14.29 | 357.23 | 429 | 141.3 | 450.9 | 400.1 | 103.2 | 14.2 | 16 | 565.2 | 16 | 48 | 158 |
| 13 5/8″ | 346.9 | 770 | 6 | 15.9 | 15.88 | 432.64 | 518 | 168.3 | 552.5 | 495.3 | 114.3 | 17.5 | 16 | 673.1 | 20 | 51 | 159 |
| 16 3/4″ | 426.2 | 870 | 6 | 8.3 | 8.33 | 478.33 | 576 | 168.3 | 655.6 | 601.7 | 76.2 | 30.2 | 19 | 776.3 | 24 | 51 | 162 |
| 18 3/4″ | 477 | 1040 | 6 | 18.3 | 18.26 | 577.9 | 697 | 223.1 | 752.5 | 674.7 | 155.6 | 25.4 | 16 | 925.5 | 24 | 61 | 164 |
| 21 1/4″ | 540.5 | 1145 | 6 | 19.1 | 19.05 | 647.88 | 781 | 241.3 | 847.7 | 762 | 165.1 | 31.8 | 21 | 1022.4 | 24 | 67 | 166 |

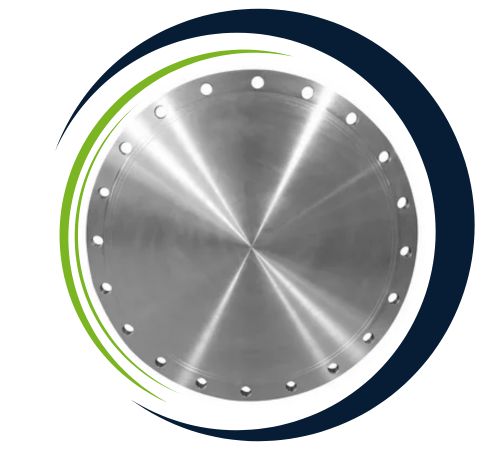

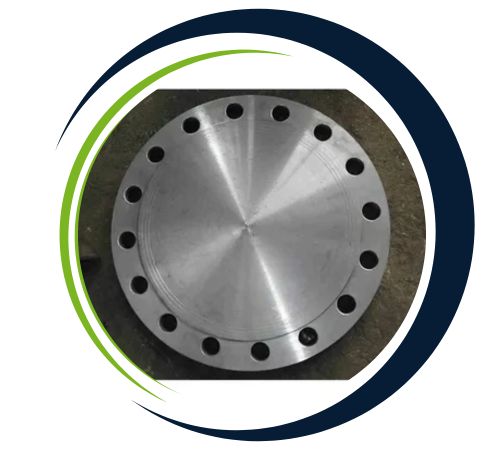

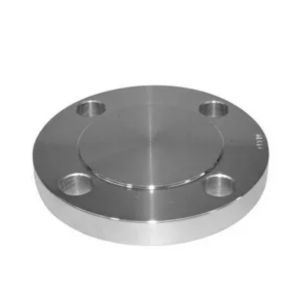

API Type 6BX Blind Flanges (10,000 PSI) is extensively used for safely sealing high-pressure pipelines, valves, and reservoirs in vital industries like oil & gas, petrochemicals and offshore drilling. These flanges are particularly well-suited to temporary as well as permanent isolation of high-pressure systems, perfectly preventing the passage of gases and maintaining system integrity. Some common uses involve capping unused boreholes, providing isolation for parts of pipelines to facilitate maintenance work and carrying out pressure tests in sealed systems. Withstands high levels of stress, abrasive environments and mechanical degradation their sturdy nature guarantees prolonged stability and security even in harsh situations.
