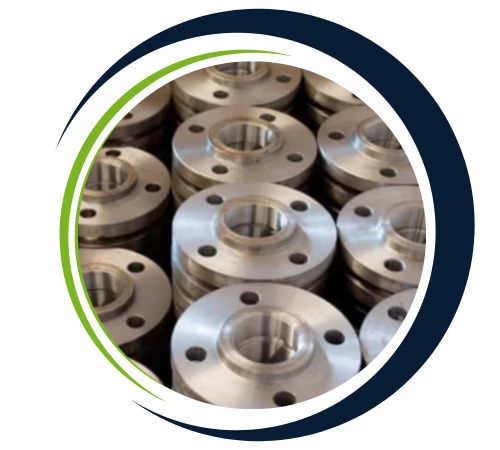

Gugsa Flanges stands as a trusted name in Addis Ababa, playing a vital role in Ethiopia’s growing industrial scene. We specialize in crafting reliable pipeline components, with a particular focus on the essential EN 1092-1 Type 02 Flanges. Our commitment lies in supplying local industries with high-quality, domestically produced parts that meet rigorous international standards. By ensuring strength and precision in every piece, we help build and maintain the robust infrastructure that powers the nation’s progress, making us a key partner for projects that demand durability and trust.
These flanges are carefully manufactured from materials like carbon or stainless steel, ensuring the right composition for strength and corrosion resistance. They are designed to meet specific mechanical properties, including excellent tensile strength and yield strength, which allow them to handle significant pressure without deforming. This robust construction makes them perfectly suited for creating secure, leak-proof connections in demanding environments. Ultimately, their reliability comes from this careful balance of material science and engineering precision, built to perform consistently under stress.
Gugsa Flanges, a leading supplier in Addis Ababa, Ethiopia, offers an extensive selection of EN 1092-1 Type 02 Flanges, including weld neck flanges, slip-on flanges, blind flanges, threaded flanges, and lap joint flanges. Designed for diverse industrial applications, our high-quality inventory and commitment to exceptional service make us a trusted choice for flange products in the region.
| Size | (1/2″) To (48″) |
|---|---|
| Pressure | PN6, PN10, PN16, PN25, PN40, PN64, PN100, PN160 |
| Size Of Bore Diameter Flange | NPS ≤ 10 |
| Standard Dimensions | EN-1092, ASME B16.48, API605, BS4504, EN1092, UNI, ISO, API7S-43, ANSI/ASME B16.5, API7S-15, MSS S44, IS 2062, ASME B16.36, DIN, AWWA C207, B16.47 Series A & B, BS1560-3.1, ISO70051, API. |
| Minimum Pressure | 150# To 2500# |
| Flange Face Type Manufacturer | Raised Face, Groove And Small Tongue Groove, RTJ, Flat Face, Large Tongue & Large Male-Female And Small Male-Female, Lap-Joint Face. |
| Top Six Type Of Flange | Threaded Flange, Lap Joint Flange, Socket-Weld Flange, Blind Flange, Slip-On Flange, Weld Neck Flange |
| Standard Materials | Duplex Steel & Super Duplex Steel, Copper Nickel, Inconel, Mild Steel, Stainless Steel, Hastelloy, Alloy Steel, Carbon Steel. |
| Thickness Length | NPS ≤ 18 |
| Manufacturing Process | Forged/ Machined/ Heat Treated |
| Other Type Of Flange | Forged/ Plate/ Threaded |
| Rated Diameter | Flange | Screws | Weight (7,85 Kg/dm3) | ||||||
|---|---|---|---|---|---|---|---|---|---|
| d1 | k | D | b | e | d2 | Thread | Bolt holes | KG | |
| 15 | 25 | 65 | 95 | 14 | 3 | 14 | M12 | 4 | 0,654 |
| 20 | 31 | 75 | 105 | 16 | 4 | 14 | M12 | 4 | 0,913 |
| 25 | 38 | 85 | 115 | 16 | 4 | 14 | M12 | 4 | 1,081 |
| 32 | 47 | 100 | 140 | 18 | 5 | 18 | M16 | 4 | 1,781 |
| 40 | 53 | 110 | 150 | 18 | 5 | 18 | M16 | 4 | 2,035 |
| 50 | 65 | 125 | 165 | 20 | 5 | 18 | M16 | 8 | 2,520 |
| 65 | 81 | 145 | 185 | 20 | 6 | 18 | M16 | 8 | 3,050 |
| 80 | 94 | 160 | 200 | 20 | 6 | 18 | M16 | 8 | 3,480 |
| 100 | 120 | 180 | 220 | 22 | 6 | 18 | M16 | 8 | 4,200 |
| 125 | 145 | 210 | 250 | 22 | 6 | 18 | M16 | 8 | 5,210 |
| 150 | 174 | 240 | 285 | 24 | 6 | 22 | M20 | 8 | 6,890 |
| 200 | 226 | 295 | 340 | 24 | 6 | 22 | M20 | 8 | 8.870 |
| 250 | 281 | 350 | 395 | 26 | 8 | 22 | M20 | 12 | 11,200 |
| 300 | 333 | 400 | 445 | 26 | 8 | 22 | M20 | 12 | 12,800 |
| 350 | 365 | 460 | 505 | 30 | 8 | 22 | M20 | 16 | 19,400 |
| 400 | 416 | 515 | 565 | 32 | 8 | 26 | M24 | 16 | 26,400 |
| 450 | 467 | 565 | 615 | 36 | 8 | 26 | M24 | 20 | 32,200 |
| 500 | 519 | 620 | 670 | 38 | 8 | 26 | M24 | 20 | 38,500 |
| 600 | 622 | 725 | 780 | 42 | 8 | 30 | M27 | 20 | 52,200 |
| 700 | 721 | 840 | 895 | 50 | 8 | 30 | M27 | 24 | 79,400 |
| 800 | 824 | 950 | 1015 | 56 | 8 | 33 | M30 | 24 | 112,000 |
| 900 | 926 | 1050 | 1115 | 62 | 8 | 33 | M30 | 28 | 135,000 |
| Rated Diameter | Flange | Screws | Weight (7,85 Kg/dm3) | ||||||
|---|---|---|---|---|---|---|---|---|---|
| d1 | k | D | b | e | d2 | Thread | Bolt holes | KG | |
| 15 | 25 | 65 | 95 | 14 | 3 | 14 | M12 | 4 | 0,655 |
| 20 | 31 | 75 | 105 | 16 | 4 | 14 | M12 | 4 | 0,913 |
| 25 | 38 | 85 | 115 | 16 | 4 | 14 | M12 | 4 | 1,081 |
| 32 | 47 | 100 | 140 | 18 | 5 | 18 | M16 | 4 | 1,781 |
| 40 | 53 | 110 | 150 | 18 | 5 | 18 | M16 | 4 | 2,035 |
| 50 | 65 | 125 | 165 | 20 | 5 | 18 | M16 | 4 | 2,668 |
| 65 | 81 | 145 | 185 | 20 | 6 | 18 | M16 | 4 | 3,241 |
| 80 | 94 | 160 | 200 | 20 | 6 | 18 | M16 | 8 | 3,512 |
| 100 | 120 | 180 | 220 | 22 | 6 | 18 | M16 | 8 | 4,247 |
| 125 | 145 | 210 | 250 | 22 | 6 | 18 | M16 | 8 | 5,258 |
| 150 | 174 | 240 | 285 | 24 | 6 | 22 | M20 | 8 | 6,945 |
| 200 | 226 | 295 | 340 | 26 | 6 | 22 | M20 | 12 | 9,383 |
| 250 | 281 | 355 | 405 | 29 | 8 | 26 | M24 | 12 | 13,717 |
| 300 | 333 | 410 | 460 | 32 | 8 | 26 | M24 | 12 | 18,213 |
| 350 | 365 | 470 | 520 | 35 | 8 | 26 | M24 | 16 | 27,184 |
| 400 | 416 | 525 | 580 | 38 | 8 | 30 | M27 | 16 | 34,789 |
| 450 | 467 | 585 | 640 | 42 | 8 | 30 | M27 | 20 | 44,793 |
| 500 | 519 | 650 | 715 | 46 | 8 | 33 | M30 | 20 | 62,227 |
| 600 | 622 | 770 | 840 | 55 | 8 | 36 | M33 | 20 | 98,983 |
| 700 | 721 | 840 | 910 | 63 | 8 | 36 | M33 | 24 | 107,32 |
| 800 | 824 | 950 | 1025 | 74 | 8 | 39 | M36 | 24 | 152,44 |
EN 1092-1 Type 02 flanges, known for their robust design and durability, are widely used in industries that require secure and leak-proof piping connections. Commonly applied in oil and gas, petrochemical, power generation, and water treatment sectors, these flanges are ideal for pipelines carrying high-pressure fluids or gases. Their compatibility with various pipe materials and resistance to corrosion make them suitable for both offshore and onshore applications. Type 02 flanges are essential in ensuring safety, structural integrity, and ease of maintenance in complex piping systems.
Yes, we offer custom sizes for EN 1092-1 Type 02 Flanges to meet specific project needs. Our team at Gugsa Flanges is committed to providing tailored solutions for all your requirements. For more details, contact us at sales@gugsaflanges.com.
We are renowned for delivering products with precise, accurate dimensions. Each product undergoes thorough testing, both destructive and non-destructive, to ensure quality before being shipped to our customers.
Our team is ready to assist you. Contact us for any queries or personalized solutions.
