Nestled in the industrial heart of Addis Ababa, Gugsa Flanges has built a reputation as a trusted partner for robust and reliable piping solutions. We take pride in being your local source for high-quality Stainless Steel 304 Flanges, manufactured and supplied to meet the rigorous demands of Ethiopia’s growing infrastructure. Our commitment is to deliver not just a product, but a foundation of strength and durability for your critical projects, ensuring seamless connections and long-lasting performance in diverse applications.
Crafted from a premium austenitic stainless steel, our 304 Flanges offer an excellent blend of strength and corrosion resistance. This particular grade contains a composition of chromium and nickel that gives it remarkable durability against a wide range of chemicals and atmospheric conditions. The material provides good mechanical properties, including impressive tensile strength and excellent toughness, even at varying temperatures. This inherent resilience makes it a go-to choice for creating dependable, leak-proof connections in piping systems that need to withstand both pressure and the elements.
| Specifications List | ASTM A182 / ASME SA182 |
|---|---|
| Class / Pressure Rating | 150#, 300#, 600#, 900#, 1500#, 2500#, PN6, PN10, PN16, PN25, PN40, PN64 etc. |
| Size Chart | 1/2″ (15 NB) to 48″ (1200NB) |
| ASTM Standards | ANSI/ASME B16.5, B16.48, BS4504, B 16.47 Series A & B, BS 10, EN-1092, DIN, etc. |
| Standard s | ANSI, ASME, BS, DIN, EN etc. |

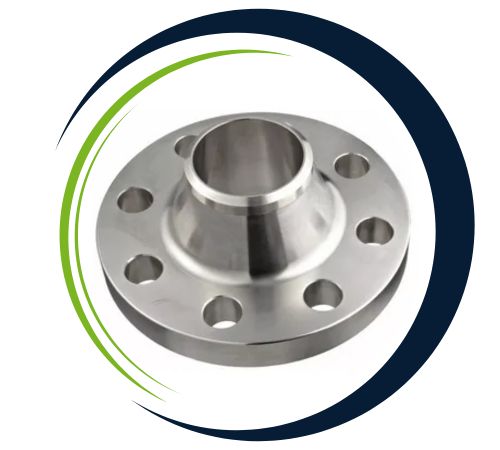

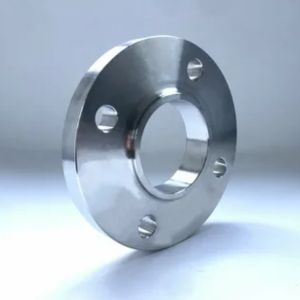

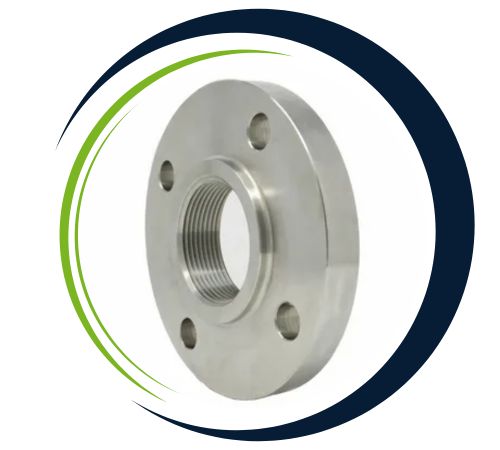

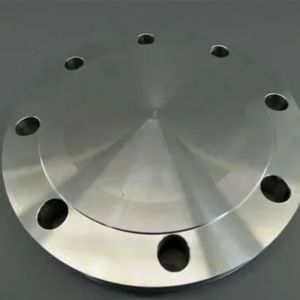

Gugsa Flanges, a leading supplier in Addis Ababa, Ethiopia, offers an extensive selection of Stainless Steel 304 flanges, including weld neck flanges, slip-on flanges, blind flanges, threaded flanges, and lap joint flanges. Designed for diverse industrial applications, our high-quality inventory and commitment to exceptional service make us a trusted choice for flange products in the region.
| Grade | C | Mn | Si | P | S | Cr | Mo | Ni | N |
|---|---|---|---|---|---|---|---|---|---|
| SS 304 | 0.08 max | 2 max | 0.75 max | 0.045 max | 0.030 max | 18 – 20 | – | 8 – 11 | – |
| Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
|---|---|---|---|---|
| 8.0 g/cm3 | 1400 °C (2550 °F) | Psi – 75000 , MPa – 515 | Psi – 30000 , MPa – 205 | 35 % |
Stainless Steel 304 flanges are widely used across various industries due to their exceptional corrosion resistance, durability, and ease of fabrication. Commonly applied in piping systems, they connect pipes, valves, pumps, and other equipment, ensuring leak-free operation in high- and low-temperature environments. Their versatility makes them suitable for the chemical, petrochemical, and oil and gas industries, as well as food processing and pharmaceuticals, where sanitation and hygiene are critical. Additionally, they perform well in marine applications due to their resistance to rust and corrosion.
| NPS (in.) | Stainless Steel 304 Flanges Dimensions | ||||
|---|---|---|---|---|---|
| Dia. of Flange (in.) | No. of Bolts | Dia. of Bolts (in.) | Dia. of Bolt Holes (in.) | Bolt Circle (in.) | |
| 1/4 | 3-3/8 | 4 | 1/2 | 0.62 | 2-1/4 |
| 1/2 | 3-1/2 | 4 | 1/2 | 0.62 | 2-3/8 |
| 3/4 | 3-7/8 | 4 | 1/2 | 0.62 | 2-3/4 |
| 1 | 4-1/4 | 4 | 1/2 | 0.62 | 3-1/8 |
| 1-1/4 | 4-5/8 | 4 | 1/2 | 0.62 | 3-1/2 |
| 1-1/2 | 5 | 4 | 1/2 | 0.62 | 3-7/8 |
| 2 | 6 | 4 | 5/8 | 0.75 | 4-3/4 |
| 2-1/2 | 7 | 4 | 5/8 | 0.75 | 5-1/2 |
| 3 | 7-1/2 | 4 | 5/8 | 0.75 | 6 |
| 3-1/2 | 8-1/2 | 8 | 5/8 | 0.75 | 7 |
| 4 | 9 | 8 | 5/8 | 0.75 | 7-1/2 |
| 5 | 10 | 8 | 3/4 | 0.88 | 8-1/2 |
| 6 | 11 | 8 | 3/4 | 0.88 | 9-1/2 |
| 8 | 13-1/2 | 8 | 3/4 | 0.88 | 11-3/4 |
| 10 | 16 | 12 | 7/8 | 1 | 14-1/4 |
| 12 | 19 | 12 | 7/8 | 1 | 17 |
| 14 | 21 | 12 | 1 | 1.12 | 18-3/4 |
| 16 | 23-1/2 | 16 | 1 | 1.12 | 21-1/4 |
| 18 | 25 | 16 | 1-1/8 | 1.25 | 22-3/4 |
| 20 | 27-1/2 | 20 | 1-1/8 | 1.25 | 25 |
| 24 | 32 | 20 | 1-1/4 | 1.38 | 29-1/2 |
Yes, we offer custom sizes for Stainless Steel 304 flanges to meet specific project needs. Our team atGugsa Flanges is committed to providing tailored solutions for all your requirements. For more details, contact us at sales@gugsaflanges.com.
We are renowned for delivering products with precise, accurate dimensions. Each product undergoes thorough testing, both destructive and non-destructive, to ensure quality before being shipped to our customers.
Our team is ready to assist you. Contact us for any queries or personalized solutions.
