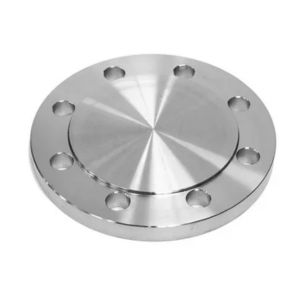

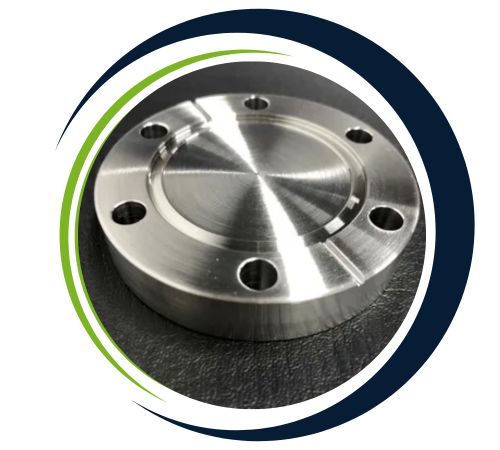

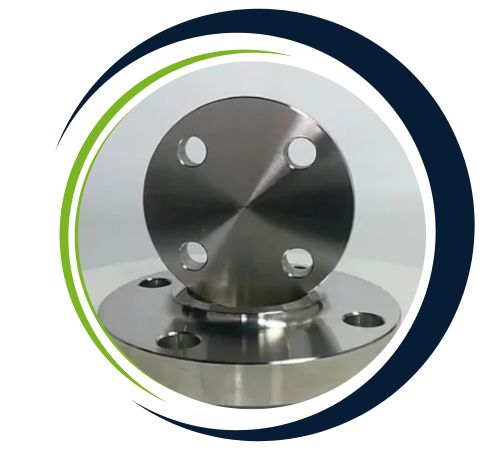

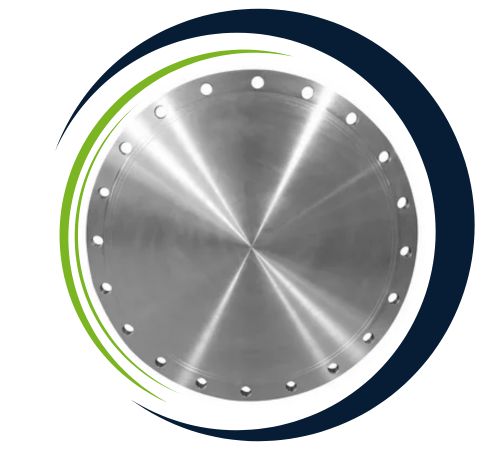

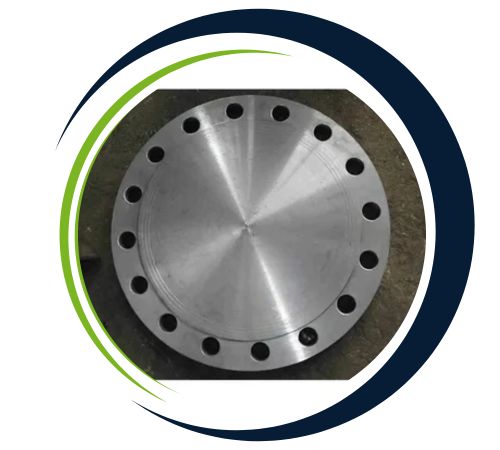

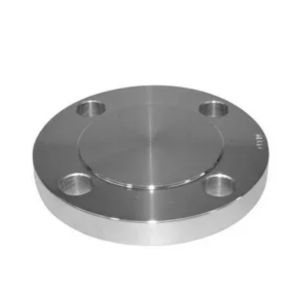

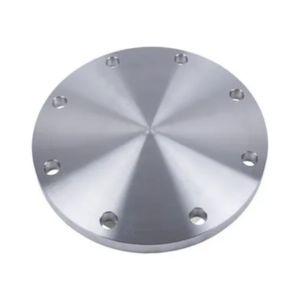

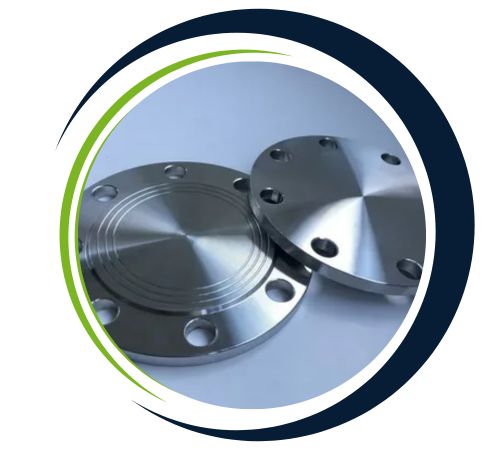

Gugsa Flanges, a top-notch manufacturer and supplier based in Addis Ababa, Ethiopia, specializes in high-quality Alloy 20 Blind Flanges. These flanges are expertly crafted to ensure safe, leak-proof sealing in critical piping systems. Their primary function is to block or isolate sections of a pipeline, delivering reliable performance even under high pressure and in corrosive environments. At Gugsa Flanges, there’s a strong focus on precision manufacturing, rigorous quality control, and compliance with international standards, which guarantees that their Alloy 20 Blind Flanges offer exceptional mechanical strength, durability, and resistance to corrosion. Thanks to their sturdy design, these flanges are perfect for industries like chemical processing, petrochemical, oil and gas, and any other sector that demands dependable and safe flange solutions.
Made from Alloy 20—a nickel-iron-chromium alloy with added copper—these Blind Flanges are specifically designed to withstand strong acids, such as sulfuric acid. They boast impressive mechanical properties, including high tensile and yield strength, toughness, and stability at elevated temperatures. With outstanding resistance to pitting, crevice corrosion, and stress corrosion cracking, they are well-suited for highly corrosive environments. Their robust construction ensures they remain durable and reliable in even the most demanding industrial applications.
| Specification | ASTM B462 / ASME SB462 |
|---|---|
| Size Chart | 1/2″ (15 NB) to 48″ (1200NB) DN10~DN5000 |
| Standards | ANSI/ASME B16.5, B16.47 Series A & B, B16.48, BS4504, BS 10, EN-1092, DIN, ANSI Flanges, ASME Flanges, BS Flanges, DIN Flanges, EN Flanges, GOST Flange, ASME/ANSI B16.5/16.36/16.47A/16.47B, MSS S44, ISO70051, JIS B2220, BS1560-3.1, API7S-15, API7S-43, API605, EN1092 |
| Pressure Rating ANSI | Class 150 LBS, 300 LBS, 600 LBS, 900 LBS, 1500 LBS, 2500 LBS |
| Pressure Calculation in DIN | 6Bar 10Bar 16Bar 25Bar 40Bar / PN6 PN10 PN16 PN25 PN40, PN64 |
| UNI | 6Bar 10Bar 16Bar 25Bar 40Bar |
| EN | 6Bar 10Bar 16Bar 25Bar 40Bar |
| Coating | Oil Black Paint, Anti-rust Paint, Zinc Plated, Yellow Transparent, Cold and Hot Dip Galvanized |
| Test Certificates | EN 10204/3.1B Raw Materials Certificate 100% Radiography Test Report Third Party Inspection Report, etc |
| Production Technique | Forged, Heat treated and machined |
| Connect Type/ Flange Face Type | Raised Face (RF), Ring Type Joint (RTJ), Flat Face (FF), Large Male-Female (LMF), Lap-Joint Face (LJF), Small Male-Female (SMF), Small Tongue, Large Tongue & Groove, Groove |
| Special design | As per your drawing AS, ANSI, BS, DIN and JIS |
| Test | Direct-reading Spectrograph, Hydrostatic testing machine, X-ray detector, UI trasonic flaw detector, Magnetic particle detector |
| Equipment | Press machine, Bending machine, Pushing Machine, electric bevelling machine, Sand-blasting machine etc |
| Manufacturer of | ANSI DIN, GOST, JIS, UNI, BS, AS2129, AWWA, EN, SABS, NFE etc. BS Flange, EN Flange, API 6A Flange, ANSI Flange, ASME Flange, DIN Flange, EN1092-1 Flange, UNI Flange, JIS/ KS Flange, BS4504 Flange, GB Flange, AWWA C207 Flange, GOST Flange, PSI Flange B.S: BS4504 , BS3293, BS1560, BS10 DIN: DIN 2527, DIN 2566, DIN 2573, DIN 2576, DIN 2641, DIN 2642, DIN 2655, DIN 2656, DIN 2627, DIN 2628, DIN 2629, DIN 2631, DIN 2632, DIN 2633, DIN 2634, DIN 2635, DIN 2636, DIN 2637, DIN 2638 ASTM B462 Alloy 20 Flanges |
| Grades | Alloy 20 |
| Material Test Certificates (MTC) as per EN 10204 3.1 and EN 10204 3.2, Test Certificates certifying NACE MR0103, NACE MR0175 | |
Gugsa Flanges, a leading supplier in Addis Ababa, Ethiopia, offers an extensive selection of Alloy 20 Blind Flanges, including weld neck flanges, slip-on flanges, blind flanges, threaded flanges, and lap joint flanges. Designed for diverse industrial applications, our high-quality inventory and commitment to exceptional service make us a trusted choice for flange products in the region.
Alloy 20 blind flanges are employed in processes that demand superior resistance to chemical corrosion especially where sulfuric acid is involved. We are utilized widely in the chemical and petrochemical processing industry pharmaceutical industry food and beverage processing industry and marine systems. Alloy 20 blind flanges are perfect for closing the ends of pipes and stopping the flow of fluids in a system, providing strength, resistance to pitting and stress corrosion cracking and superior performance in acidic or chloride-bearing environments. Their adaptability also makes them the choice of option for high-requirement industrial applications.
| STANDARD | WERKSTOFF NR. | UNS | AFNOR | EN |
| Alloy 20 | 2.4660 | N08020 | Z2NCUD31-20AZ | NiCr20CuMo |
| ASME/ANSI B 16.5 | Blind Flange |
| PRESSURE CLASS | 150, 300, 400, 600, 900, 1500, 2500 |
| ASME/ANSI B 16.47 | Blind Flange [Series A & B],Welding Neck Flange |
| PRESSURE CLASS | 75, 150, 300, 400, 600, 900 |
| ASME/ANSI B 16.36 | Blind Flange |
| PRESSURE CLASS | 300, 400, 600, 900, 1500, 2500 |
| PRESSURE CLASS | PN 2.5 TO PN 40 |
| BS 4504[PART 1] | Hubbed Slip-On |
| PRESSURE CLASS | PN 2.5 TO PN 400 |
| BS 1560 BOSS | Hubbed Slip-On Hubbed Threaded |
| PRESSURE CLASS | 150, 300, 400, 600, 900, 1500, 2500 |
| BS10 | Plate Slip-On Flange, Slip-On Boss Flange |
| TABLE | D, E, F, H |
| DIN FLANGES | DIN 2527, 2566, 2573, 2576, 2641,2642, 2655, 2656, 2627, 2628, 2629, 2631, 2632, 2633, 2634, 2635, 2636, 2637,2638, 2673 |
| PRESSURE CLASS | PN 6 TO PN 100 |
Yes, we offer custom sizes for Alloy 20 Blind Flanges to meet specific project needs. Our team at Gugsa Flanges is committed to providing tailored solutions for all your requirements. For more details, contact us at sales@gugsaflanges.com.
Alloy 20 Blind Flanges are commonly utilized in industries that require secure isolation of pipelines under tough conditions. They’re particularly ideal for chemical processing plants, sulfuric acid handling systems, petrochemical units, and oil and gas operations. Additionally, these flanges find their place in power generation, desalination plants, and various other industrial systems where corrosion resistance, high strength, and leak-proof sealing are essential. By providing safe isolation of pipelines, Alloy 20 Blind Flanges enhance maintenance, inspection, and operational efficiency, all while ensuring long-term reliability in aggressive chemical environments.
Our team is ready to assist you. Contact us for any queries or personalized solutions.
