Strategically located in the heart of Addis Ababa, Gugsa Flanges has established itself as a trusted partner for industries requiring unwavering quality and reliability. Our specialization lies in providing superior-grade Super Duplex Steel Flanges, engineered to meet the most demanding operational challenges. We are committed to supporting Ethiopia’s growing infrastructure and industrial sectors by supplying components that offer exceptional longevity and performance, ensuring your projects are built on a foundation of strength and durability right from the local source.
Super Duplex Steel is celebrated for its outstanding composition, primarily a high concentration of chromium, molybdenum, and nitrogen. This unique blend grants the flanges remarkable mechanical properties, including a very high tensile strength and excellent resistance to pitting and crevice corrosion. They are significantly stronger than standard stainless steels and offer superior toughness, making them capable of withstanding extreme pressures and harsh environmental conditions without compromising their structural integrity.
| Specifications | : | ASTM A182 / ASME SA182 |
| Size | : | 1/8″ NB TO 24″ NB |
| Standards | : | ANSI/ASME B16.5, B 16.47 Series A & B, B16.48, BS4504, BS 10, EN-1092, DIN, etc. |
| Class / Pressure | : | 150#, 300#, 600#, 900#, 1500#, 2500#, PN6, PN10, PN16, PN25, PN40, PN64 etc. |
| Standard | : | ANSI Flanges, ASME Flanges, BS Flanges, DIN Flanges, EN Flanges, etc. |
| Grades | : | S32750 / S32760 / S32950 |

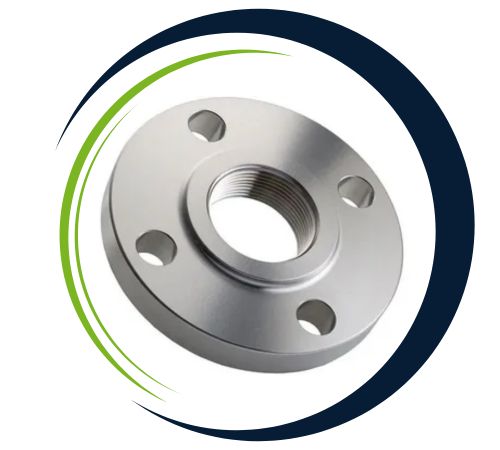

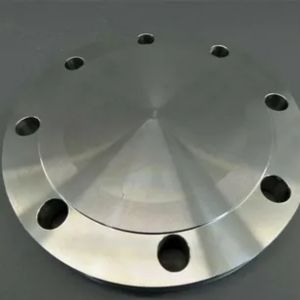

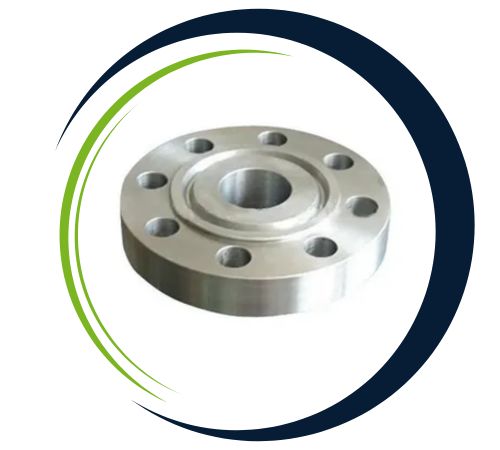

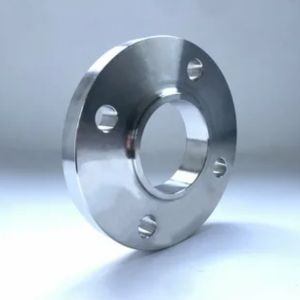

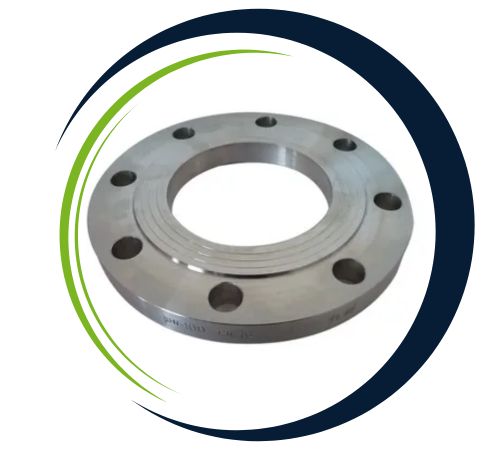

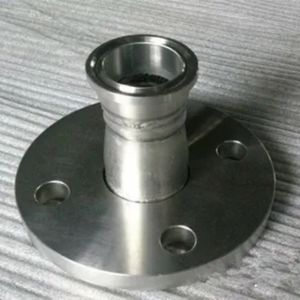

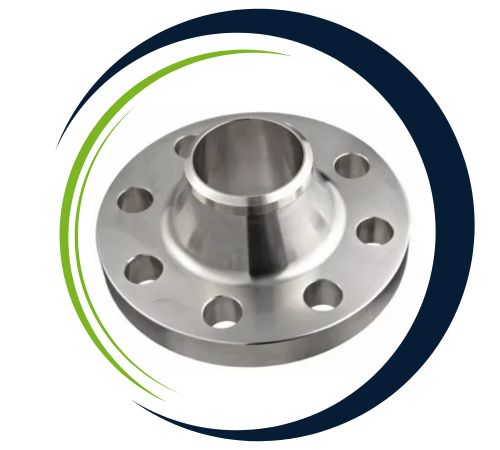

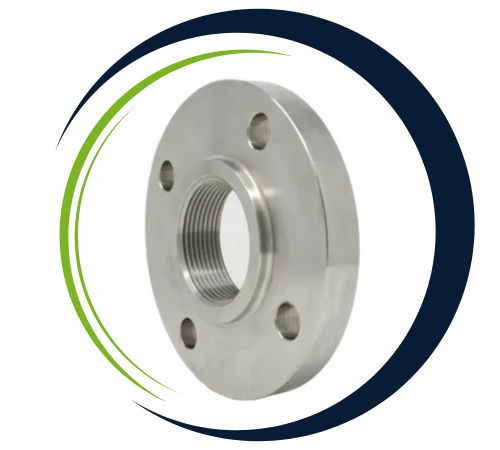

Gugsa Flanges, a leading supplier in Addis Ababa, Ethiopia, offers an extensive selection of Super Duplex Steel Flanges, including weld neck flanges, slip-on flanges, blind flanges, threaded flanges, and lap joint flanges. Designed for diverse industrial applications, our high-quality inventory and commitment to exceptional service make us a trusted choice for flange products in the region.
| % | ASTM A182 Super Duplex UNS S32750 And UNS 32760 Flanges |
| C | 0.03 maximum |
| Mn | 1.5 |
| Mo | 3.0-5.0 |
| Ni | 5.5-8.0 |
| N | 0.2-0.35 |
| Si | 0.8 |
| P | 0.035 |
| S | 0.02 |
| Cr | 24-26 |
| Cu | 0.5-3.0 |
| Tensile Strength (in MPa) | 770 |
| A5 Elongation (in %) | 25 |
| Proof Stress 0.2% (in MPa) | 550 |
Super Duplex Steel flanges have widespread use in industries requiring high strength corrosion resistance and durability in aggressive environments. They are ideal for offshore oil and gas platforms subsea pipelines and desalination plants due to their resistance to seawater and chloride-induced corrosion. Super Duplex Steel flanges also have extensive application in chemical processing, heat exchangers, pressure vessels, and power generation systems. In marine, pulp and paper, and environmental engineering applications, Super Duplex flanges ensure long-term performance under high pressure and temperature. Their higher mechanical properties guarantee that they will be a reliable choice for demanding applications involving safety and structural integrity.
| Normal Pipe Size | Flanges Diameter (‘O’) | Diameter of (B.C.) ‘A’ | Diameter of (B.H.) ‘D’ | Holes Number | Flanges Wall Thickness ‘C’ | Diameter (Flanges) at Weld Bevel | (Flanges) Diameter of Hub ‘E’ | Length Of Through Hub | Bore (‘B’) | Diameter of (RF) R | Depth of Socket Weld F | Threading Length | ||||
| SORF/ SWRF (Y) | WNRF (Y) | Lap Joit (Y) | SORF/ SWRF (B) | Lap Joit (B) | ||||||||||||
| 1/2” | 15 | 95.2 | 66.7 | 15.9 | 4 | 14.3 | 21.3 | 38.1 | 22.2 | 52.4 | 22.2 | 22.3 | 22.9 | 34.9 | 9.5 | 15.9 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 3/4” | 20 | 117.5 | 82.5 | 19.0 | 4 | 15.9 | 26.7 | 47.6 | 25.4 | 57.1 | 25.4 | 27.7 | 28.2 | 42.9 | 11.1 | 15.9 |
| 1” | 25 | 123.8 | 88.9 | 19.0 | 4 | 17.5 | 33.5 | 54.0 | 27.0 | 61.9 | 27.0 | 34.5 | 35.0 | 50.8 | 12.7 | 17.5 |
| 1 | 32 | 133.3 | 98.4 | 19.0 | 4 | 20.6 | 42.2 | 63.5 | 28.6 | 66.7 | 28.6 | 43.2 | 43.7 | 63.5 | 14.3 | 20.6 |
| 1 | 40 | 155.6 | 114.3 | 22.2 | 4 | 22.2 | 48.3 | 69.8 | 31.7 | 69.8 | 31.7 | 49.5 | 50.0 | 73.0 | 15.9 | 22.2 |
| 2” | 50 | 165.1 | 127.0 | 19.0 | 8 | 25.4 | 60.4 | 84.1 | 36.5 | 73.0 | 36.5 | 62.0 | 62.5 | 92.1 | 17.5 | 25.4 |
| 2 | 65 | 190.5 | 149.2 | 22.2 | 8 | 28.6 | 73.1 | 100.0 | 41.3 | 79.4 | 41.3 | 74.7 | 75.4 | 104.8 | 19.0 | 28.6 |
| 3” | 80 | 209.5 | 168.3 | 22.2 | 8 | 31.8 | 88.9 | 117.5 | 46.0 | 82.5 | 46.0 | 90.7 | 91.4 | 127.0 | – | 30.2 |
| 3 | 90 | 228.5 | 184.2 | 22.2 | 8 | 34.9 | 101.6 | 133.4 | 49.3 | 85.7 | 49.3 | 103.4 | 104.1 | 140.0 | – | 31.7 |
| 4” | 100 | 273.0 | 215.9 | 25.4 | 8 | 38.1 | 114.3 | 152.4 | 54.0 | 101.6 | 54.0 | 116.1 | 116.8 | 157.2 | – | 33.3 |
| 5” | 125 | 330.2 | 266.7 | 28.6 | 8 | 44.4 | 141.2 | 188.9 | 60.3 | 114.3 | 60.3 | 143.8 | 144.5 | 185.7 | – | 36.5 |
| 6” | 150 | 355.6 | 292.1 | 28.6 | 12 | 47.6 | 168.4 | 222.2 | 66.7 | 117.5 | 66.7 | 170.7 | 171.4 | 215.9 | – | 39.7 |
| 8” | 200 | 419.1 | 349.2 | 31.7 | 12 | 55.6 | 219.2 | 273.0 | 76.2 | 133.3 | 76.2 | 221.5 | 222.2 | 269.9 | – | 44.4 |
| 10” | 250 | 508.0 | 431.8 | 34.9 | 16 | 63.5 | 273.0 | 342.9 | 85.7 | 152.4 | 111.2 | 276.3 | 277.4 | 323.8 | – | 49.2 |
| 12” | 300 | 558.8 | 488.9 | 34.9 | 20 | 66.7 | 323.8 | 400.0 | 92.1 | 155.6 | 117.3 | 327.1 | 328.2 | 381.0 | – | 55.6 |
| 14” | 350 | 603.2 | 527.0 | 38.1 | 20 | 69.9 | 355.6 | 431.8 | 93.7 | 165.1 | 127.0 | 359.1 | 360.2 | 412.7 | – | 57.1 |
| 16” | 400 | 685.8 | 603.2 | 41.3 | 20 | 76.2 | 406.4 | 495.3 | 106.4 | 177.8 | 139.7 | 410.5 | 411.2 | 469.9 | – | 63.5 |
| 18” | 450 | 742.9 | 654.0 | 44.4 | 24 | 82.6 | 457.2 | 546.1 | 117.5 | 184.1 | 152.4 | 461.8 | 462.3 | 533.4 | – | 68.3 |
| 20” | 500 | 812.8 | 723.9 | 44.4 | 24 | 88.9 | 508.0 | 609.6 | 127.0 | 190.5 | 165.1 | 513.1 | 514.3 | 584.2 | – | 73.0 |
| 24” | 600 | 939.8 | 838.2 | 50.8 | 24 | 101.6 | 609.6 | 717.5 | 139.7 | 203.2 | 184.1 | 615.9 | 615.9 | 692.1 | – | 82.5 |
Yes, we offer custom sizes for Super Duplex Steel Flanges to meet specific project needs. Our team atGugsa Flanges is committed to providing tailored solutions for all your requirements. For more details, contact us at sales@gugsaflanges.com.
We are renowned for delivering products with precise, accurate dimensions. Each product undergoes thorough testing, both destructive and non-destructive, to ensure quality before being shipped to our customers.
Our team is ready to assist you. Contact us for any queries or personalized solutions.
