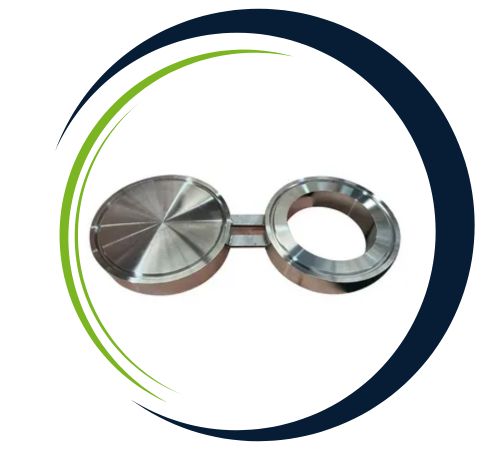

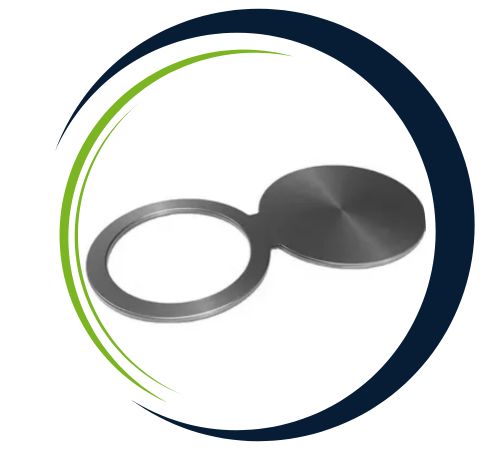

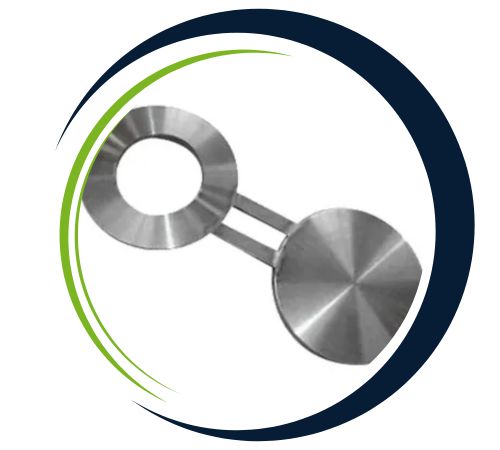

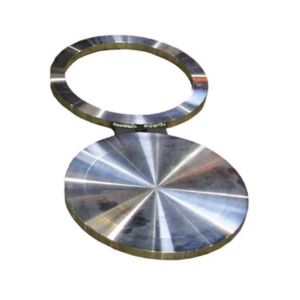

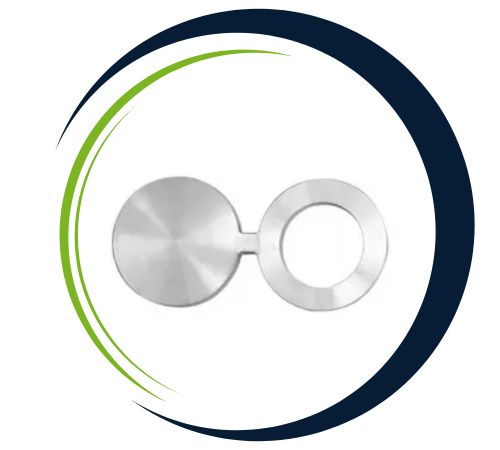

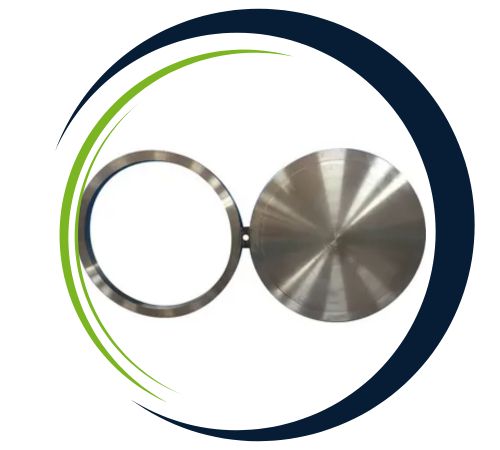

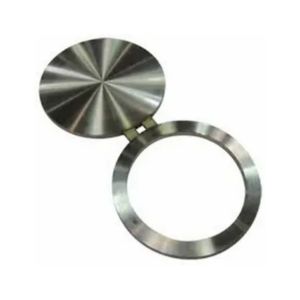

Gugsa Flanges, a top-notch manufacturer and supplier based in Addis Ababa, Ethiopia, specializes in high-quality Super Duplex Steel Spectacle Flanges. These flanges are expertly crafted for safe and efficient flow isolation in high-performance piping systems. With their innovative disc-and-ring design, they allow for quick transitions between open and blind positions, ensuring reliable flow control and effective pipeline isolation. At Gugsa Flanges, the focus is on precision manufacturing, rigorous quality control, and compliance with international standards, resulting in Spectacle Flanges that boast exceptional corrosion resistance, impressive mechanical strength, and long-lasting durability—perfect for critical applications in the oil and gas, petrochemical, marine, and chemical processing sectors.
Made from super duplex stainless steel grades like S32750 and S32760, these Spectacle Flanges combine high levels of chromium, molybdenum, and nitrogen to deliver outstanding corrosion resistance and mechanical properties. They offer superior tensile and yield strength, excellent fatigue resistance, and stability even in high-temperature and high-pressure conditions. The spectacle design ensures even stress distribution, making it safe to isolate process lines. These flanges are highly resistant to pitting, crevice corrosion, and stress corrosion cracking, guaranteeing long-term reliability in operations.
| Specification | ASTM A182 / ASME SA182 |
|---|---|
| Size Chart | 1/2″ (15 NB) to 48″ (1200NB) DN10~DN5000 |
| Standards | ANSI/ASME B16.48, B16.47 Series A & B, BS4504, BS 10, EN-1092, DIN, ANSI Flanges, ASME Flanges, BS Flanges, DIN Flanges, EN Flanges, GOST Flange, ASME/ANSI B16.48/16.36/16.47A/16.47B, MSS S44, ISO70051, JISB2220, BS1560-3.1, API7S-15, API7S-43, API605, EN1092 |
| Pressure Rating ANSI | Class 150 LBS, 300 LBS, 600 LBS, 900 LBS, 1500 LBS, 2500 LBS |
| Pressure Calculation in DIN | 6Bar 10Bar 16Bar 25Bar 40Bar / PN6 PN10 PN16 PN25 PN40, PN64 |
| UNI | 6Bar 10Bar 16Bar 25Bar 40Bar |
| EN | 6Bar 10Bar 16Bar 25Bar 40Bar |
| Coating | Oil Black Paint, Anti-rust Paint, Zinc Plated, Yellow Transparent, Cold and Hot Dip Galvanized |
| Test Certificates | EN 10204/3.1B Raw Materials Certificate 100% Radiography Test Report Third Party Inspection Report, etc |
| Production Technique | Forged, Heat treated and machined |
| Connect Type/ Flange Face Type | Raised Face (RF), Ring Type Joint (RTJ), Flat Face (FF), Large Male-Female (LMF), Lap-Joint Face (LJF), Small Male-Female (SMF), Small Tongue, Large Tongue & Groove, Groove |
| Special design | As per your drawing AS, ANSI, BS, DIN and JIS 15 NB (1/2″) to 200 NB (8″) Equal and Reducing Configurations |
| Test | Direct-reading Spectrograph, Hydrostatic testing machine, X-ray detector, UI trasonic flaw detector, Magnetic particle detector |
| Equipment | Press machine, Bending machine, Pushing Machine, electric bevelling machine, Sand-blasting machine etc |
| Manufacturer of | ANSI DIN, GOST, JIS, UNI, BS, AS2129, AWWA, EN, SABS, NFE etc. BS Flange, EN Flange, API 6A Flange, ANSI Flange, ASME Flange, DIN Flange, EN1092-1 Flange, UNI Flange, JIS/ KS Flange, BS4504 Flange, GB Flange, AWWA C207 Flange, GOST Flange, PSI Flange B.S: BS4504 , BS3293, BS1560, BS10 AS 2129: Table D; Table E; Table H ANSI B16.18, ANSI B16.47 Series A & B, MSS SP44, ASA, API-605, AWWA, Custom Drawings ANSI : ANSI B16.47(API605), MSS SP44, ANSI B16.36, ANSI B16.48 ANSI B16.47, MSS SP44, ANSI B16.36, ANSI B16.48 American standard (ANSI) German (DIN) British standard (BS) DIN: DIN 2527, DIN 2566, DIN 2573, DIN 2576, DIN 2641, DIN 2642, DIN 2655, DIN 2656, DIN 2627, DIN 2628, DIN 2629, DIN 2631, DIN 2632, DIN 2633, DIN 2634, DIN 2635, DIN 2636, DIN 2637, DIN 2638 ASTM A182 s32950 Super Duplex Steel Flanges The other standard: AWWA C207; EN1092-1, GOST12820, JIS B2220; KS B1503, SABS1123; NFE29203; UNI2276 |
| Grades | Super Duplex Steel s32750, f53, s32760, f55, s32950, f52 |
| Material Test Certificates (MTC) as per EN 10204 3.1 and EN 10204 3.2, Test Certificates certifying NACE MR0103, NACE MR0175 | |
Gugsa Flanges, a leading supplier in Addis Ababa, Ethiopia, offers an extensive selection of Super Duplex Steel Spectacle Flanges, including weld neck flanges, slip-on flanges, blind flanges, threaded flanges, and lap joint flanges. Designed for diverse industrial applications, our high-quality inventory and commitment to exceptional service make us a trusted choice for flange products in the region.
Super Duplex Steel Spectacle Flanges are widely used in processes where strength, hardness, and corrosion resistance are of the highest priority. Common uses include offshore oil and gas platforms, petrochemical facilities, chemical processing, and power generation facilities. Super Duplex Steel Spectacle Flanges may be designed to disconnect a pipeline or system by providing a blind or open flange depending on demand. They are ideal for conditions exposed to severe conditions such as high pressure, high temperatures and corrosive materials. Super Duplex Steel Spectacle Flanges are of great value especially in subsea applications heat exchangers and pressure vessels, yielding reliable performance under demanding conditions.
| ASME/ANSI B 16.48 | Spectacle Blind Flange |
| PRESSURE CLASS | 150, 300, 400, 600, 900, 1500, 2500 |
| ASME/ANSI B 16.47 | Blind Flange [Series A & B],Threaded Flange |
| PRESSURE CLASS | 75, 150, 300, 400, 600, 900 |
| ASME/ANSI B 16.36 | Spectacle Blind Flange |
| PRESSURE CLASS | 300, 400, 600, 900, 1500, 2500 |
| PRESSURE CLASS | PN 2.5 TO PN 40 |
| BS 4504[PART 1] | Hubbed Slip-On |
| PRESSURE CLASS | PN 2.5 TO PN 400 |
| BS 1560 BOSS | Hubbed Slip-On Hubbed Threaded |
| PRESSURE CLASS | 150, 300, 400, 600, 900, 1500, 2500 |
| BS10 | Plate Slip-On Flange, Slip-On Boss Flange |
| TABLE | D, E, F, H |
| DIN FLANGES | DIN 2527, 2566, 2573, 2576, 2641,2642, 2655, 2656, 2627, 2628, 2629, 2631, 2632, 2633, 2634, 2635, 2636, 2637,2638, 2673 |
| PRESSURE CLASS | PN 6 TO PN 100 |
Yes, we offer custom sizes for Super Duplex Steel Spectacle Flanges to meet specific project needs. Our team at Gugsa Flanges is committed to providing tailored solutions for all your requirements. For more details, contact us at sales@gugsaflanges.com.
Super Duplex Steel Spectacle Flanges are widely utilized in industries that demand dependable, corrosion-resistant, and robust flow isolation solutions. They are particularly suited for oil and gas pipelines, offshore and marine applications, chemical processing facilities, and petrochemical plants. These flanges facilitate safe and efficient line isolation for maintenance, inspections, or emergency shutdowns without interrupting overall operations. Additionally, they find applications in water treatment, desalination plants, and other heavy industrial systems where strong, durable, and corrosion-resistant flange connections are essential for safety and operational efficiency.
Our team is ready to assist you. Contact us for any queries or personalized solutions.
