From the heart of Addis Ababa, Gugsa Flanges stands as a dedicated manufacturer and supplier, bringing industrial strength to the forefront. We take immense pride in our specialized production of Aluminium 5083 Flanges, engineered to meet the rigorous demands of modern industry. Our focus is on delivering components that are not only robust and reliable but also integral to the success of projects across Ethiopia and beyond, ensuring our clients receive quality that is built to endure challenging environments.
The composition of Aluminium 5083 is a key to its success, primarily strengthened with a significant magnesium content that gives it exceptional performance. This alloy is celebrated for its superb resistance to saltwater corrosion, making it a standout choice. Mechanically, it offers an excellent strength-to-weight ratio and maintains good weldability, which means it holds its strength even after extensive fabrication work, providing lasting durability where it matters most.

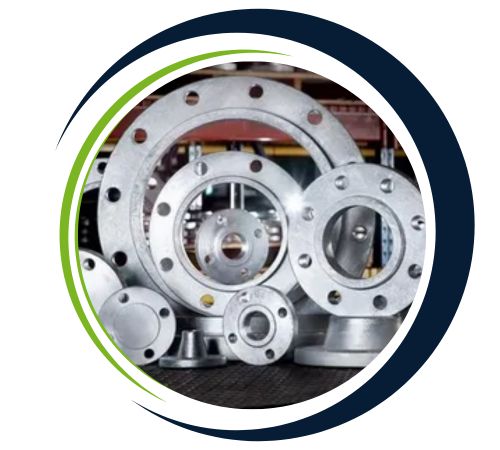

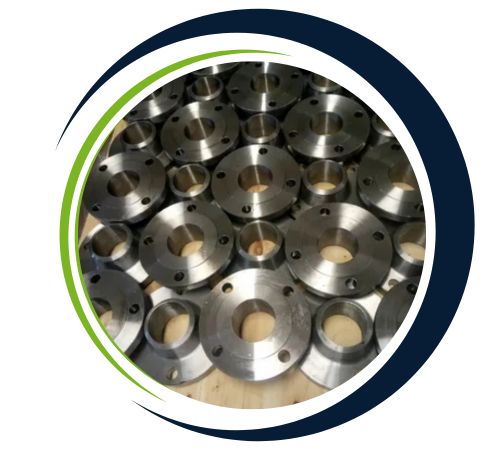

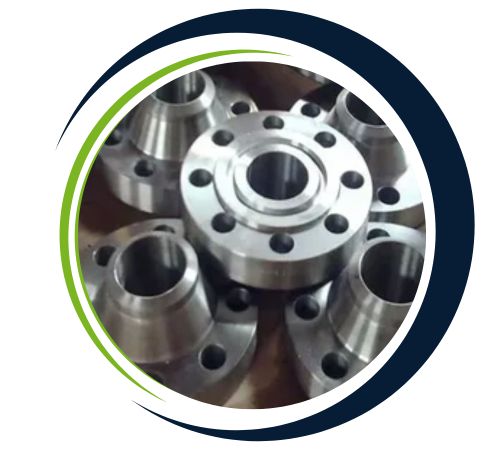

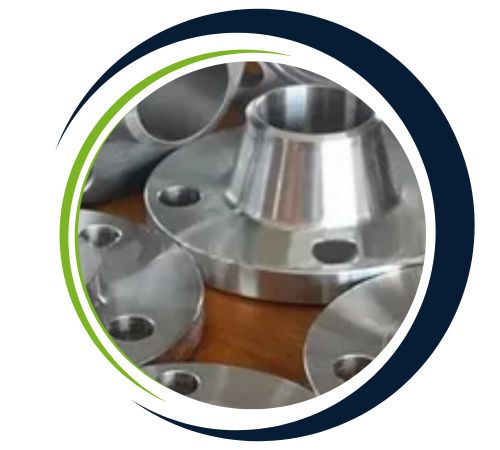

Gugsa Flanges, a leading supplier in Addis Ababa, Ethiopia, offers an extensive selection of Aluminium 5083 Flanges, including weld neck flanges, slip-on flanges, blind flanges, threaded flanges, and lap joint flanges. Designed for diverse industrial applications, our high-quality inventory and commitment to exceptional service make us a trusted choice for flange products in the region.
Standards : ASTM B247 / B/SB 247
Temper : H14
Thickness : 1 Mm To 100 mm
Diameter : Upto 2000 mm
Flange Diameter : 3″ DIA up to 38″ DIA 1500 lbs max
Flanges Form : Hot Rolled Flanges, Cold Rolled Flange, Proof Machined Flanges
Finish :Mill, Customer specific finish
Aluminum Flange Coating : PVC Coated, Color Coated, Polyester, Fluorocarbon, polyurethane and epoxy coating
| Al | Cu | Mn | Cr | Si | Fe | Ti | Mg | Zn | Other Each | Others Total |
| Bal | 0.10 max | 0.40 / 1.0 | 0.05 / 0.25 | 0.40 max | 0.40 max | 0.15 max | 4.0 / 4.90 | 0.25 max | 0.05 max | 0.15 max |
| Tensile Strength | Hardness Brinell | Proof Stress | Elongation |
| 275 – 350 MPa | 75 HB | 125 Min MPa | 12 Min % |
Aluminium 5083 flanges find extensive application in high corrosion resistance and strength-demanding industries. They are used extensively in marine conditions, including shipbuilding and offshore platforms, where their seawater and salt corrosion resistance is essential. These flanges are also used in the aerospace sector for aircraft parts and in transportation for structural lightweight applications. Aluminium 5083 flanges are also found in chemical processing plants, where they withstand exposure to harsh chemicals. Their excellent durability, weldability, and strength make them suitable for a variety of other industries, including oil and gas, power generation, and food processing.
Yes, we offer custom sizes for Aluminium 5083 Flanges to meet specific project needs. Our team at Gugsa Flanges is committed to providing tailored solutions for all your requirements. For more details, contact us at sales@gugsaflanges.com.
We are renowned for delivering products with precise, accurate dimensions. Each product undergoes thorough testing, both destructive and non-destructive, to ensure quality before being shipped to our customers.
Our team is ready to assist you. Contact us for any queries or personalized solutions.
