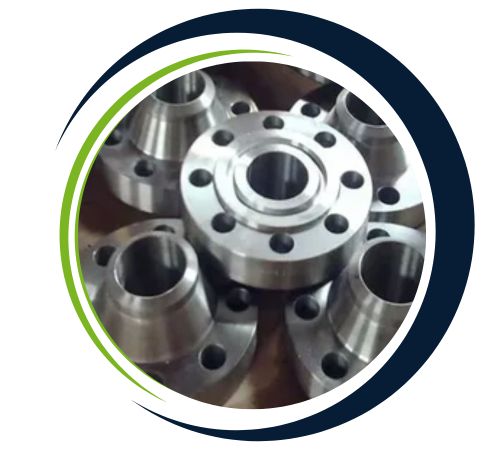

Strategically located in the heart of Addis Ababa, Gugsa Flanges has established itself as a trusted partner for industrial supply, bringing reliability and precision to Ethiopia’s growing infrastructure. We understand the critical nature of robust piping systems, which is why our focus on ANSI B16.5 Class 300 Flanges is a point of pride. We ensure these essential components meet the rigorous demands of various applications, providing our clients with dependable connections that form the backbone of successful projects across the nation.
These Class 300 flanges are engineered to perform under significant pressure and temperature. They are typically crafted from durable materials like carbon steel, stainless steel, or alloy steel, each chosen for its specific strength and corrosion resistance. This composition grants them excellent mechanical properties, including high tensile strength and good yield strength, allowing them to maintain a secure seal and structural integrity in demanding service conditions without failure.

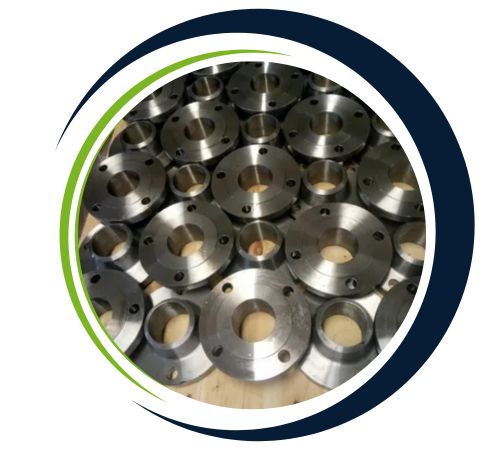

Gugsa Flanges, a leading supplier in Addis Ababa, Ethiopia, offers an extensive selection of ANSI B16.5 Class 300 Flanges, including weld neck flanges, slip-on flanges, blind flanges, threaded flanges, and lap joint flanges. Designed for diverse industrial applications, our high-quality inventory and commitment to exceptional service make us a trusted choice for flange products in the region.
| Size Range | 1/2″ (15 NB) to 48″ (1200NB) DN10~DN5000 |
|---|---|
| Standards | B16.47 Series A & B, ANSI/ASME B16.5, BS4504, B16.48, EN-1092, BS 10, DIN, ANSI Flanges, BS Flanges, ASME Flanges, EN Flanges, DIN Flanges, GOST Flanges. |
| DIN | 6Bar 10Bar 16Bar 25Bar 40Bar / PN6 PN10 PN16 PN25 PN40, PN64 |
| JIS | 5K, 10 K, 16 K 20 K, 30 K, 40 K, 63 K |
| UNI | 6Bar 10Bar 16Bar 25Bar 40Bar |
| EN | 6Bar 10Bar 16Bar 25Bar 40Bar |
| Main Types | Threaded / Forged / Plate /Screwed |
| Flange supporting material | Ring Joint, Gasket, Flange Bolts |
| Test Certificates | EN 10204/3.1B Raw Materials Certificate 100% Radiography Test Report Third Party Inspection Report, etc |
| Most Common Types |
|
| Production technique |
|

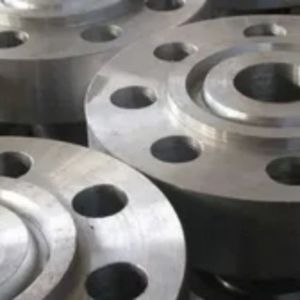

| Connect Type/ Flange Face Type | Ring Type Joint (RTJ), Raised Face (RF),Large Male-Female (LMF), Flat Face (FF),Small Male-Female (SMF), Lap-Joint Face (LJF), Large Tongue & Groove, Small Tongue, Groove |
| Special design | As per your drawing AS, ANSI, BS, DIN and JIS 15 NB (1/2″) to 200 NB (8″) Equal and Reducing Configurations Class 300 Threaded Flange, Socketweld Flange, Slip-On Flange, Blind Flange, Weld Neck Flange |
| Test | Direct-reading Spectrograph, Hydrostatic testing machine, X-ray detector, UI trasonic flaw detector, Magnetic particle detector |
| Equipment | Bending machine, Press machine, electric bevelling machine, Pushing Machine, Sand-blasting machine etc |
| Origin | Indian / West Europe / Japan / USA / Korean |
| Specialized Manufacturer of |
|
| Standard | ANSI DIN, GOST, JIS, UNI, BS, AS2129, AWWA, EN, SABS, NFE etc.
BS Flange, EN Flange, API 6A Flange, ANSI Flange, ASME Flange, DIN Flange, EN1092-1 Flange, UNI Flange, JIS/ KS Flange, BS4504 Flange, GB Flange, AWWA C207 Flange, GOST Flange, PSI Flange
|
| Material Test Certificates (MTC) as per EN 10204 3.1 and EN 10204 3.2, Test Certificates certifying NACE MR0103, NACE MR0175 | |
| CLASS | Nominal Pipe Size | Slip On | Threaded | Socket Weld | Lap Joint | Blind | Weld Neck |
| 300 lb | ½ | 1 | 1 | 2 | 1 | 2 | 2 |
| ¾ | 2 | 2 | 2 | 2 | 2 | 2 | |
| 1 | 2 | 2 | 2 | 2 | 2 | 3 | |
| 1¼ | 3 | 3 | 3 | 3 | 3 | 3 | |
| 1½ | 3 | 3 | 3 | 3 | 4 | 4 | |
| 2 | 5 | 5 | 5 | 5 | 5 | 6 | |
| 2½ | 8 | 8 | 8 | 8 | 7 | 10 | |
| 3 | 9 | 9 | 9 | 9 | 9 | 11.5 | |
| 3½ | 11 | 12 | 11 | 11 | 13 | 12 | |
| 4 | 13 | 13 | 13 | 13 | 17 | 16.5 | |
| 5 | 15 | 15 | 15 | 15 | 20 | 21 | |
| 6 | 19 | 19 | 19 | 19 | 27 | 26 | |
| 8 | 30 | 30 | 30 | 30 | 47 | 42 | |
| 10 | 43 | 43 | 43 | 43 | 70 | 54 | |
| 12 | 64 | 64 | 64 | 64 | 123 | 88 | |
| 14 | 90 | 90 | 90 | 105 | 140 | 114 | |
| 16 | 106 | 98 | 98 | 140 | 180 | 140 | |
| 18 | 130 | 130 | 130 | 160 | 220 | 165 | |
| 20 | 165 | 165 | 165 | 195 | 285 | 197 | |
| 22 | 185 | 185 | 185 | 245 | 355 | 225 | |
| 24 | 220 | 220 | 220 | 275 | 430 | 268 |
ANSI B16.5 Class 300 flanges are used extensively in high-pressure application industries like oil and gas, petrochemical, and power plants. The flanges are suitable for pressures up to 740 psi at ambient conditions. They are used extensively to join pipes, valves, and other equipment for safe, leak-free joints. The Class 300 rating renders them ideal for medium to high-pressure systems, with a compromise between strength and cost-effectiveness. The flanges are also available in a range of materials such as carbon steel, stainless steel, and alloy steel, allowing versatility across environments and temperatures.
Yes, we offer custom sizes for ANSI B16.5 Class 300 Flanges to meet specific project needs. Our team at Gugsa Flanges is committed to providing tailored solutions for all your requirements. For more details, contact us at sales@gugsaflanges.com.
We are renowned for delivering products with precise, accurate dimensions. Each product undergoes thorough testing, both destructive and non-destructive, to ensure quality before being shipped to our customers.
Our team is ready to assist you. Contact us for any queries or personalized solutions.
