Operating out of Addis Ababa, Gugsa Flanges has established itself as a trusted partner for Ethiopia’s growing industrial sector, delivering reliability where it matters most. Our specialization in ANSI B16.5 Class 400 Flanges means we provide components built to handle the most demanding high-pressure systems, ensuring seamless integration and long-term performance for critical projects across the nation. We understand that behind every specification is a need for unwavering quality and local, dependable service, which is the cornerstone of everything we produce and supply.

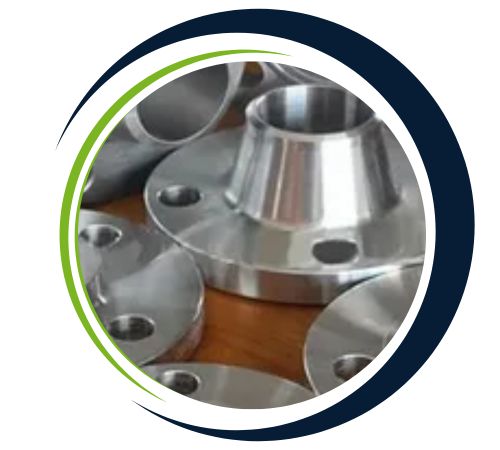

To withstand the intense pressures of Class 400 service, these flanges are crafted from robust materials like forged carbon steel or stainless steel. Their composition is carefully controlled to provide exceptional strength and durability. Through precise heat treatment, the flanges achieve superior mechanical properties, including high tensile strength and excellent yield strength, allowing them to maintain a perfect seal and structural integrity even under extreme operating conditions without deforming or failing.

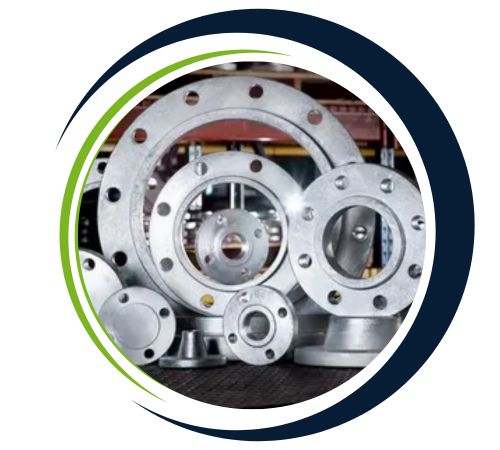

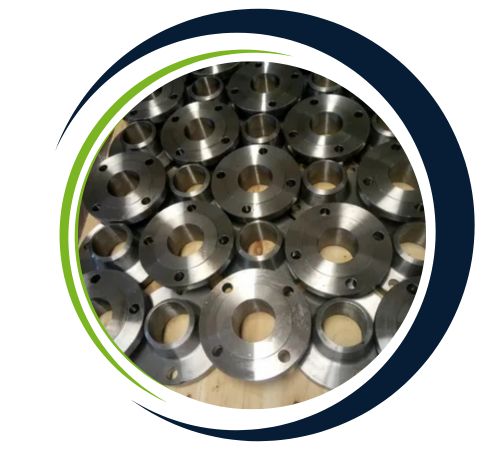

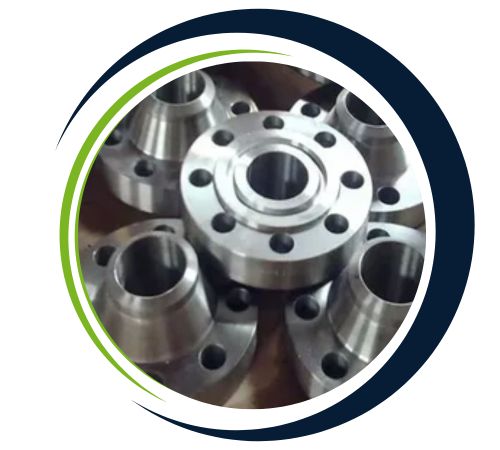

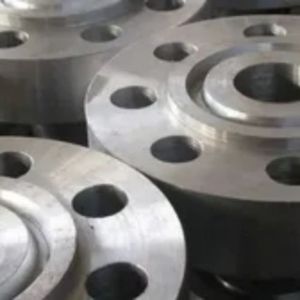

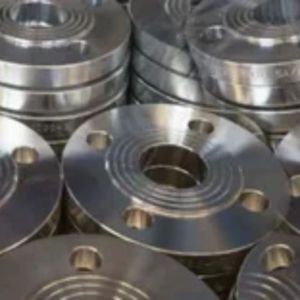

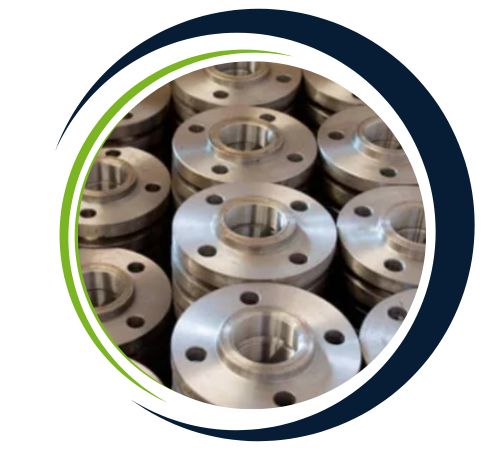

Gugsa Flanges, a leading supplier in Addis Ababa, Ethiopia, offers an extensive selection of ANSI B16.5 Class 400 Flanges, including weld neck flanges, slip-on flanges, blind flanges, threaded flanges, and lap joint flanges. Designed for diverse industrial applications, our high-quality inventory and commitment to exceptional service make us a trusted choice for flange products in the region.
| Size Range | 1/2″ (15 NB) to 48″ (1200NB) DN10~DN5000 |
|---|---|
| Standards | B16.47 Series A & B, ANSI/ASME B16.5, BS4504, B16.48, EN-1092, BS 10, DIN, ANSI Flanges, BS Flanges, ASME Flanges, EN Flanges, DIN Flanges, GOST Flanges. |
| DIN | 6Bar 10Bar 16Bar 25Bar 40Bar / PN6 PN10 PN16 PN25 PN40, PN64 |
| JIS | 5K, 10 K, 16 K 20 K, 30 K, 40 K, 63 K |
| UNI | 6Bar 10Bar 16Bar 25Bar 40Bar |
| EN | 6Bar 10Bar 16Bar 25Bar 40Bar |

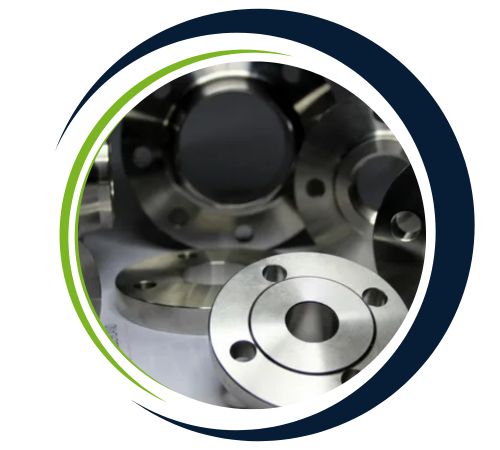

| Main Types | Threaded / Forged / Plate /Screwed |
| Flange supporting material | Ring Joint, Gasket, Flange Bolts |
| Test Certificates | EN 10204/3.1B Raw Materials Certificate 100% Radiography Test Report Third Party Inspection Report, etc |
| Most Common Types |
|
| Production technique |
|

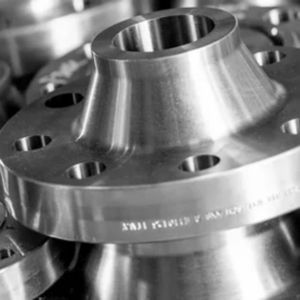

| Connect Type/ Flange Face Type | Ring Type Joint (RTJ), Raised Face (RF),Large Male-Female (LMF), Flat Face (FF),Small Male-Female (SMF), Lap-Joint Face (LJF), Large Tongue & Groove, Small Tongue, Groove |
| Special design | As per your drawing AS, ANSI, BS, DIN and JIS 15 NB (1/2″) to 200 NB (8″) Equal and Reducing Configurations Class 400 Threaded Flange, Socketweld Flange, Slip-On Flange, Blind Flange, Weld Neck Flange |
| Test | Direct-reading Spectrograph, Hydrostatic testing machine, X-ray detector, UI trasonic flaw detector, Magnetic particle detector |
| Equipment | Bending machine, Press machine, electric bevelling machine, Pushing Machine, Sand-blasting machine etc |
| Origin | Indian / West Europe / Japan / USA / Korean |
| Specialized Manufacturer of |
|
| Standard | ANSI DIN, GOST, JIS, UNI, BS, AS2129, AWWA, EN, SABS, NFE etc. BS Flange, EN Flange, API 6A Flange, ANSI Flange, ASME Flange, DIN Flange, EN1092-1 Flange, UNI Flange, JIS/ KS Flange, BS4504 Flange, GB Flange, AWWA C207 Flange, GOST Flange, PSI Flange
|
| CLASS | Nominal Pipe Size | Slip On | Threaded | Socket Weld | Lap Joint | Blind | Weld Neck |
| 400 lb | ½ | 1 | 1 | 2 | 1 | 2 | 2 |
| ¾ | 2 | 2 | 2 | 2 | 2 | 2 | |
| 1 | 2 | 2 | 2 | 2 | 2 | 3 | |
| 1¼ | 3 | 3 | 3 | 3 | 3 | 3 | |
| 1½ | 3 | 3 | 3 | 3 | 4 | 4 | |
| 2 | 5 | 5 | 5 | 5 | 5 | 6 | |
| 2½ | 8 | 8 | 8 | 8 | 7 | 10 | |
| 3 | 9 | 9 | 9 | 9 | 9 | 11.5 | |
| 3½ | 11 | 12 | 11 | 11 | 13 | 12 | |
| 4 | 13 | 13 | 13 | 13 | 17 | 16.5 | |
| 5 | 15 | 15 | 15 | 15 | 20 | 21 | |
| 6 | 19 | 19 | 19 | 19 | 27 | 26 | |
| 8 | 30 | 30 | 30 | 30 | 47 | 42 | |
| 10 | 43 | 43 | 43 | 43 | 70 | 54 | |
| 12 | 64 | 64 | 64 | 64 | 123 | 88 | |
| 14 | 90 | 90 | 90 | 105 | 140 | 114 | |
| 16 | 106 | 98 | 98 | 140 | 180 | 140 | |
| 18 | 130 | 130 | 130 | 160 | 220 | 165 | |
| 20 | 165 | 165 | 165 | 195 | 285 | 197 | |
| 22 | 185 | 185 | 185 | 245 | 355 | 225 | |
| 24 | 220 | 220 | 220 | 275 | 430 | 268 |
ANSI B16.5 Class 400 flanges are widely applied to high-temperature and high-pressure systems across various industries. Generally applied in the power generation, petrochemical, oil and gas, and chemical processing industries, they serve a vital purpose to connect pipes, valves, and equipment in systems that require tough, leak-resistant seals. The high-pressure resistance of these flanges renders them appropriate for applications in critical pipeline systems, steam lines, and pressure vessels. The flanges are also utilized in HVAC, water treatment, and other uses which need strength and durability to provide safety and operational performance.
Yes, we offer custom sizes for ANSI B16.5 Class 400 Flanges to meet specific project needs. Our team at Gugsa Flanges is committed to providing tailored solutions for all your requirements. For more details, contact us at sales@gugsaflanges.com.
We are renowned for delivering products with precise, accurate dimensions. Each product undergoes thorough testing, both destructive and non-destructive, to ensure quality before being shipped to our customers.
Our team is ready to assist you. Contact us for any queries or personalized solutions.
