DIN 2543 PN16 Slip On Flanges Manufacturer and Supplier In Addis Ababa, Ethiopia

Situated in the heart of Addis Ababa, Gugsa Flanges has built a reputation as a trusted local partner for industrial supply, blending deep market knowledge with a commitment to quality. We take pride in our role as a key manufacturer and supplier, ensuring that essential components like the DIN 2543 PN16 Slip On Flanges are readily available to support Ethiopia’s growing infrastructure and industrial projects. Our focus is on delivering reliable solutions that you can count on for your most critical piping systems.

DIN 2642 PN10 Lapped Joint Pipe Flange In Ethiopia, DIN 2642 PN10 Lap Joint Plate Flange United kingdom, DIN 2642 PN10 Standards Lap Joint Flanges Addis Ababa, Raised Face DIN 2642 PN10 LJ Flanges Dire Dawa, Best Price of DIN 2642 PN10 Lap Joint Flange Adama, Stainless Steel DIN 2642 PN10 Lap Joint Flanges Manufacturer in Mek’ele, DIN 2642 PN10 Lapped Joint Flange In Gondar.

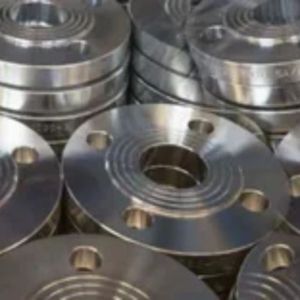

DIN 2543 PN16 Slip On Flanges

DIN 2642 PN10 Lapped Joint Pipe Flange

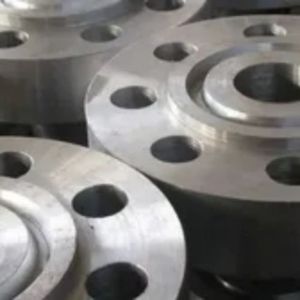

DIN 2642 PN10 Lap Joint Plate Flange

Crafted to meet the precise demands of the DIN 2543 standard, these PN16-rated Slip On Flanges are typically manufactured from robust carbon steel, ensuring dependable performance. This specific composition grants them excellent mechanical properties, including a high tensile strength that can comfortably handle the pressure ratings up to 16 bar. This balance of material integrity and designed resilience makes them a go-to choice for creating strong, leak-proof connections in a wide range of industrial piping applications.

DIN 2642 PN10 Lap Joint Flanges Supplier in Ethiopia, DIN 2642 PN10 Lapped Joint Flanges Stockist in United kingdom, DIN 2642 PN10 Lap Joint Flanges Manufacturer in Addis Ababa, DIN 2642 PN10 Lap Joint Flanges Supplier in Dire Dawa, DIN 2642 PN10 Lapped Joint Flanges Stockist in Adama, DIN 2642 PN10 LJ Flanges Manufacturer in Mek’ele, DIN 2543 PN16 Slip On Flanges Gondar.

Largest DIN 2543 PN16 Slip On Flanges in Addis Ababa, Ethiopia

Gugsa Flanges, a leading supplier in Addis Ababa, Ethiopia, offers an extensive selection of DIN 2543 PN16 Slip On Flanges, including weld neck flanges, slip-on flanges, blind flanges, threaded flanges, and lap joint flanges. Designed for diverse industrial applications, our high-quality inventory and commitment to exceptional service make us a trusted choice for flange products in the region.

Contact us to get a quick quote for your requirement.

We offer These Flanges as per DIN, ISO, JIS or ANSI Standard.

DIN 2543 PN16 Slip On Flanges Specification

Size Chart	1/2″ (15 NB) To 48″ (1200NB)
Coating Flanges Faces	Zinc Plated, Oil Black Paint, Yellow Transparent, Cold and Hot Dip Galvanized, Anti-rust Paint
Design For Size	DIN, EN, ASA, PN, JIS, BS, ANSI, ASME
Pressure Rating Table	Class 150 LBS, Class 300 LBS, Class 600 LBS, Class 900 LBS, Class 1500 LBS, Class 2500 LBS
Supporting Flanges Material	Flanges Bolts, Gasket, Ring Joint
Connect Type Type	FF, RTJ, SMF, LMF, RF, LJF
Production Process	Forged, Heat Treated and Machined
Standard	ASME B16.38 Flange, DIN Flange, ISO Flange, JIS Flange, PN Flange, MSS SP44 Flange, EN-1092 Flange, BS10 Flange, ASME B16.47 (Series A, Series B) Flange, UNI Flange, ASME B16.5 Flange, AWWA Flange, DIN Flange, GOST Flange
Machining Equipment	Bending machine, Sand-blasting machine, Press machine, Pushing Machine, Electric bevelling machine etc

DIN 2543 PN16 Slip On Flanges Dimensions

Rated	d1		D	b	k	h1	d3	s	r	h2	d4	f	Holes	Thread	d2	Kg
Diameter	ISO Series	DIN Series
15	–	20	95	14	65	35	30	2	4	6	45	2	4	M 12	14	0,648
	21,3	–					32
20	–	25	105	16	75	38	38	2,3	4	6	58	2	4	M 12	14	0,952
	26,9	–					40
25	–	30	115	16	85	38	42	2,6	4	6	68	2	4	M 12	14	1,14
	33,7	–					45
32	–	38	140	16	100	40	52	2,6	6	6	78	2	4	M 16	18	1,69
	42,4	–					56
40	–	44,5	150	16	110	42	60	2,6	6	7	88	3	4	M 16	18	1,86
	48,3	–					64
50	–	57	165	18	125	45	72	2,9	6	8	102	3	4	M 16	18	2,53
	60,3	–					75
65	76,1	–	185	18	145	45	90	2,9	6	10	122	3	4	M 16	18	3,06
80	88,9	–	200	20	160	50	105	3,2	8	10	138	3	8	M 16	18	3,7
100	–	108	220	20	180	52	125	3,6	8	12	158	3	8	M 16	18	4,62
	114,3	–					131
125	–	133	250	22	210	55	150	4	8	12	188	3	8	M 16	18	6,3
	139,7	–					156
150	–	159	285	22	240	55	175	4,5	10	12	212	3	8	M 20	22	7,75
	168,3	–					184
200	219,1	–	340	24	295	62	235	5,9	10	16	268	3	8	M 20	22	11,3
250	–	267	395	26	350	68	285	6,3	12	16	320	3	12	M 20	22	14,7
	273	–					292
300	323,9	–	445	26	400	68	344	7,1	12	16	370	4	12	M 20	22	17,4
350	355,6	–	505	26	460	68	385	7,1	12	16	430	4	16	M 20	22	23,6
	–	368														21,6
400	406,4	–	565	26	515	72	440	7,1	12	16	482	4	16	M 24	26	28,6
	–	419														26,2
(450)	457	–	615	28	565	72	488	7,1	12	16	532	4	20	M 24	26	31,5
500	508	–	670	28	620	75	542	7,1	12	16	585	4	20	M 24	26	38,1
600	610	–	780	28	725	80	642	7,1	12	18	685	5	20	M 27	30	44,6
700	711	–	895	30	840	80	745	8	12	18	800	5	24	M 27	30	62,4
800	813	–	1015	32	950	90	850	8	12	18	905	5	24	M 30	33	84,1
900	914	–	1115	34	1050	95	950	10	12	20	1005	5	28	M 30	33	98,5
1000	1016	–	1230	34	1160	95	1052	10	16	20	1110	5	28	M 33	36	115

DIN 2543 PN16 Slip On Flanges are used extensively in industries needing safe and dependable pipe connections. Typical applications are in water treatment plants, gas and oil pipelines, petrochemical plants, and power generation systems. They are best suited for moderate temperature and pressure environments, where easy alignment during maintenance and installation is possible. Due to their slip-on nature, they can slide over the pipe, hence economical and time-efficient. Ideal for both low- and large-diameter pipework, these are widely used in HVAC piping systems, fire protection networks, and maritime application, offering resilience, resistance to corrosion, and effective mechanical seal under PN16 pressure ratings.

DIN 2642 PN10 Lapped Joint Pipe Flange In Ethiopia, DIN 2642 PN10 Lap Joint Plate Flange United kingdom, DIN 2642 PN10 Standards Lap Joint Flanges Addis Ababa, Raised Face DIN 2642 PN10 LJ Flanges Dire Dawa, Best Price of DIN 2642 PN10 Lap Joint Flange Adama, Stainless Steel DIN 2642 PN10 Lap Joint Flanges Manufacturer in Mek’ele, DIN 2642 PN10 Lapped Joint Flange In Gondar.

Types of DIN 2543 PN16 Slip On Flanges

Are Custom Sizes Available for DIN 2543 PN16 Slip On Flanges?

Yes, we offer custom sizes for DIN 2543 PN16 Slip On Flanges to meet specific project needs. Our team at Gugsa Flanges is committed to providing tailored solutions for all your requirements. For more details, contact us at sales@gugsaflanges.com.

Material Testing

We are renowned for delivering products with precise, accurate dimensions. Each product undergoes thorough testing, both destructive and non-destructive, to ensure quality before being shipped to our customers.
