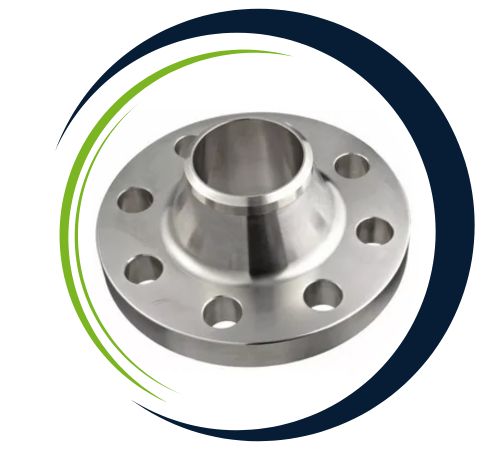

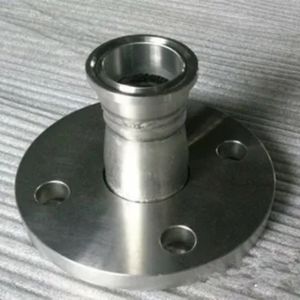

Nestled in the heart of Ethiopia’s industrial landscape, Gugsa Flanges stands as a trusted partner for robust engineering solutions. Based in Addis Ababa, we specialize in manufacturing and supplying high-quality components like the DIN 2633 PN16 Weld Neck Flange. This particular flange is a cornerstone for reliable pipe connections, designed to meet the rigorous demands of various industries. We understand that the integrity of your systems depends on the quality of every single part, which is why precision and durability are at the core of everything we produce.
Crafted with meticulous attention to detail, these flanges are typically manufactured from certified carbon or stainless steel. This ensures a composition that delivers excellent mechanical properties, including high tensile strength and impressive resistance to impact. The design, governed by the DIN 2633 standard for a Pressure Nominal of 16 bar, guarantees a reliable and leak-proof performance even under substantial pressure. This robust build makes them a dependable choice for creating secure, long-lasting connections in demanding piping networks.
| Size Chart | 1/2″ (15 NB) To 48″ (1200NB) |
| Coating Flanges Faces | Zinc Plated, Oil Black Paint, Yellow Transparent, Cold and Hot Dip Galvanized, Anti-rust Paint |
| Design For Size | DIN, EN, ASA, PN, JIS, BS, ANSI, ASME |
| Pressure Rating Table | Class 150 LBS, Class 300 LBS, Class 600 LBS, Class 900 LBS, Class 1500 LBS, Class 2500 LBS |
| Supporting Flanges Material | Flanges Bolts, Gasket, Ring Joint |
| Connect Type Type | FF, RTJ, SMF, LMF, RF, LJF |
| Production Process | Forged, Heat Treated and Machined |
| Standard | ASME B16.38 Flange, DIN Flange, ISO Flange, JIS Flange, PN Flange, MSS SP44 Flange, EN-1092 Flange, BS10 Flange, ASME B16.47 (Series A, Series B) Flange, UNI Flange, ASME B16.5 Flange, AWWA Flange, DIN Flange, GOST Flange |
| Machining Equipment | Bending machine, Sand-blasting machine, Press machine, Pushing Machine, Electric bevelling machine etc |
|
Germany standard flange DIN 2633 welding neck flanges; nominal pressure 16 |
||||||||||||||||
|
Brides à souder à collerette DIN 2633: pression nominale 16 |
||||||||||||||||
| Pipe | Flange | Neck | Raised face | Screws | Weight | |||||||||||
| (7,85 Kg/dm3) | ||||||||||||||||
| Rated | d1 | D | b | k | h1 | d3 | s | r | h2 | d4 | f | Holes | Thread | d2 | Kg | |
| Diameter | ISO Series | DIN Series | ||||||||||||||
| 15 | – | 20 | 95 | 14 | 65 | 35 | 30 | 2 | 4 | 6 | 45 | 2 | 4 | M 12 | 14 | 0,648 |
| 21,3 | – | 32 | ||||||||||||||
| 20 | – | 25 | 105 | 16 | 75 | 38 | 38 | 2,3 | 4 | 6 | 58 | 2 | 4 | M 12 | 14 | 0,952 |
| 26,9 | – | 40 | ||||||||||||||
| 25 | – | 30 | 115 | 16 | 85 | 38 | 42 | 2,6 | 4 | 6 | 68 | 2 | 4 | M 12 | 14 | 1,14 |
| 33,7 | – | 45 | ||||||||||||||
| 32 | – | 38 | 140 | 16 | 100 | 40 | 52 | 2,6 | 6 | 6 | 78 | 2 | 4 | M 16 | 18 | 1,69 |
| 42,4 | – | 56 | ||||||||||||||
| 40 | – | 44,5 | 150 | 16 | 110 | 42 | 60 | 2,6 | 6 | 7 | 88 | 3 | 4 | M 16 | 18 | 1,86 |
| 48,3 | – | 64 | ||||||||||||||
| 50 | – | 57 | 165 | 18 | 125 | 45 | 72 | 2,9 | 6 | 8 | 102 | 3 | 4 | M 16 | 18 | 2,53 |
| 60,3 | – | 75 | ||||||||||||||
| 65 | 76,1 | – | 185 | 18 | 145 | 45 | 90 | 2,9 | 6 | 10 | 122 | 3 | 4 | M 16 | 18 | 3,06 |
| 80 | 88,9 | – | 200 | 20 | 160 | 50 | 105 | 3,2 | 8 | 10 | 138 | 3 | 8 | M 16 | 18 | 3,7 |
| 100 | – | 108 | 220 | 20 | 180 | 52 | 125 | 3,6 | 8 | 12 | 158 | 3 | 8 | M 16 | 18 | 4,62 |
| 114,3 | – | 131 | ||||||||||||||
| 125 | – | 133 | 250 | 22 | 210 | 55 | 150 | 4 | 8 | 12 | 188 | 3 | 8 | M 16 | 18 | 6,3 |
| 139,7 | – | 156 | ||||||||||||||
| 150 | – | 159 | 285 | 22 | 240 | 55 | 175 | 4,5 | 10 | 12 | 212 | 3 | 8 | M 20 | 22 | 7,75 |
| 168,3 | – | 184 | ||||||||||||||
| (175) | 193,7 | – | 315 | 24 | 270 | 60 | 210 | 5,4 | 10 | 12 | 242 | 3 | 8 | M 20 | 22 | 9,85 |
| 200 | 219,1 | – | 340 | 24 | 295 | 62 | 235 | 5,9 | 10 | 16 | 268 | 3 | 12 | M 20 | 22 | 11 |
| 250 | – | 267 | 405 | 26 | 355 | 70 | 285 | 6,3 | 12 | 16 | 320 | 3 | 12 | M 24 | 26 | 15,6 |
| 273 | – | 292 | ||||||||||||||
| 300 | 323,9 | – | 460 | 28 | 410 | 78 | 344 | 7,1 | 12 | 16 | 378 | 4 | 12 | M 24 | 26 | 22 |
| 350 | 355,6 | – | 520 | 30 | 470 | 82 | 390 | 8 | 12 | 16 | 438 | 4 | 16 | M 24 | 26 | 31,2 |
| – | 368 | 28,8 | ||||||||||||||
| 400 | 406,4 | – | 580 | 32 | 525 | 85 | 445 | 8 | 12 | 16 | 490 | 4 | 16 | M 27 | 30 | 39,3 |
| – | 419 | 36,3 | ||||||||||||||
| (450) | 457 | – | 640 | 34 | 585 | 85 | 490 | 8 | 12 | 16 | 550 | 4 | 20 | M 27 | 30 | 44,3 |
| 500 | 508 | – | 715 | 34 | 650 | 90 | 548 | 8 | 12 | 16 | 610 | 4 | 20 | M 30 | 33 | 61 |
| 600 | 610 | – | 840 | 36 | 770 | 95 | 652 | 8,8 | 12 | 18 | 725 | 5 | 20 | M 33 | 36 | 75,4 |
| 700 | 711 | – | 910 | 36 | 840 | 100 | 755 | 8,8 | 12 | 18 | 795 | 5 | 24 | M 33 | 36 | 77 |
| 800 | 813 | – | 1025 | 38 | 950 | 105 | 855 | 10 | 12 | 20 | 900 | 5 | 24 | M 36 | 39 | 101 |
| 900 | 914 | – | 1125 | 40 | 1050 | 110 | 955 | 10 | 12 | 20 | 1000 | 5 | 28 | M 36 | 39 | 122 |
| 1000 | 1016 | – | 1255 | 42 | 1170 | 120 | 1058 | 10 | 16 | 22 | 1115 | 5 | 28 | M 39 | 42 | 162 |

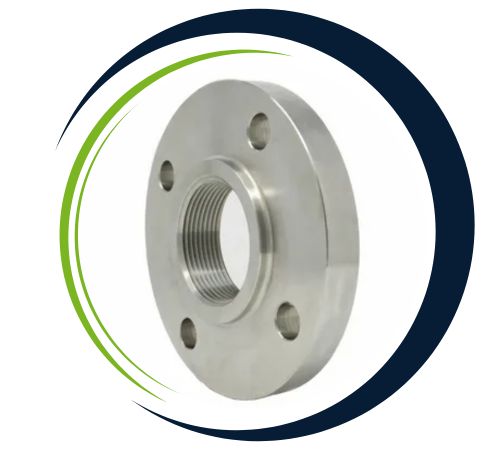

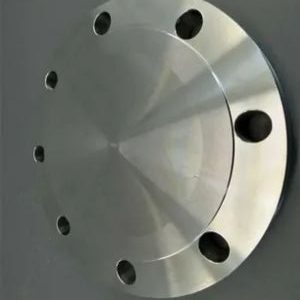

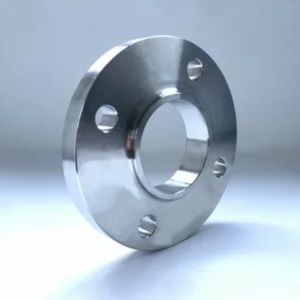

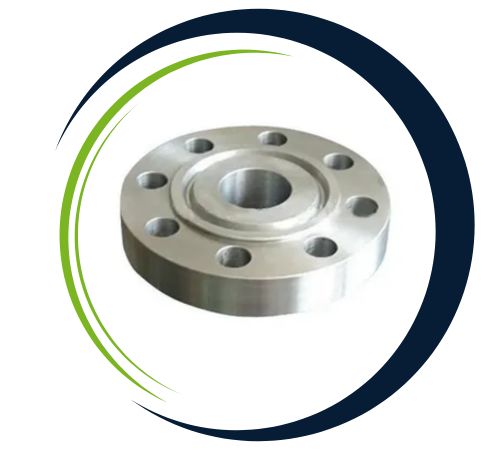

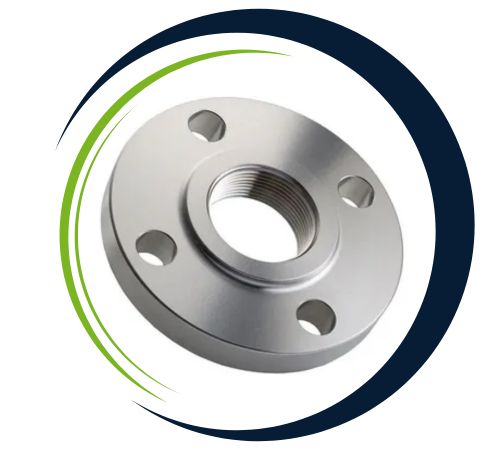

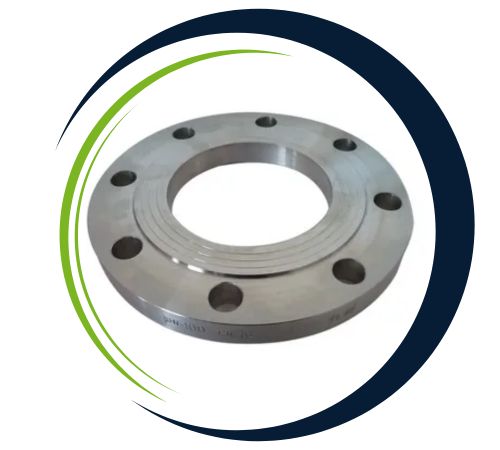

Gugsa Flanges, a leading supplier in Addis Ababa, Ethiopia, offers an extensive selection of DIN 2633 PN16 Weld Neck Flanges , including weld neck flanges, slip-on flanges, blind flanges, threaded flanges, and lap joint flanges. Designed for diverse industrial applications, our high-quality inventory and commitment to exceptional service make us a trusted choice for flange products in the region.
DIN 2633 PN16 Weld Neck Flanges are used in medium-pressure piping systems across industries such as oil and gas, petrochemical, water treatment, and power generation. Their robust design ensures secure, leak-proof connections between pipes, valves, and equipment, making them ideal for systems exposed to fluctuating temperatures and pressures. Commonly installed in critical applications, these flanges provide reliable performance and stability in process pipelines, pumps, and compressors. Their durability and precise alignment make them essential for maintaining system integrity and optimizing operational efficiency in high-demand environments.
Yes, we offer custom sizes for DIN 2633 PN16 Weld Neck Flanges to meet specific project needs. Our team atGugsa Flanges is committed to providing tailored solutions for all your requirements. For more details, contact us at sales@gugsaflanges.com.
| NPS NPS (inch) | |||||
|---|---|---|---|---|---|
| Diammeter of Flange (inch) | No. of Bolts | Diammeter of Bolts (inch) | Diammeter of Bolt Holes (inch) | Bolt Circle (inch) | |
| 1/4 | 3-3/8 | 4 | 1/2 | 0.62 | 2-1/4 |
| 1/2 | 3-1/2 | 4 | 1/2 | 0.62 | 2-3/8 |
| 3/4 | 3-7/8 | 4 | 1/2 | 0.62 | 2-3/4 |
| 1 | 4-1/4 | 4 | 1/2 | 0.62 | 3-1/8 |
| 1-1/4 | 4-5/8 | 4 | 1/2 | 0.62 | 3-1/2 |
| 1-1/2 | 5 | 4 | 1/2 | 0.62 | 3-7/8 |
| 2 | 6 | 4 | 5/8 | 0.75 | 4-3/4 |
| 2-1/2 | 7 | 4 | 5/8 | 0.75 | 5-1/2 |
| 3 | 7-1/2 | 4 | 5/8 | 0.75 | 6 |
| 3-1/2 | 8-1/2 | 8 | 5/8 | 0.75 | 7 |
| 4 | 9 | 8 | 5/8 | 0.75 | 7-1/2 |
| 5 | 10 | 8 | 3/4 | 0.88 | 8-1/2 |
| 6 | 11 | 8 | 3/4 | 0.88 | 9-1/2 |
| 8 | 13-1/2 | 8 | 3/4 | 0.88 | 11-3/4 |
| 10 | 16 | 12 | 7/8 | 1 | 14-1/4 |
| 12 | 19 | 12 | 7/8 | 1 | 17 |
| 14 | 21 | 12 | 1 | 1.12 | 18-3/4 |
| 16 | 23-1/2 | 16 | 1 | 1.12 | 21-1/4 |
| 18 | 25 | 16 | 1-1/8 | 1.25 | 22-3/4 |
| 20 | 27-1/2 | 20 | 1-1/8 | 1.25 | 25 |
| 24 | 32 | 20 | 1-1/4 | 1.38 | 29-1/2 |
| DIN 2633 PN16 Weld Neck Flange Dimensions | Raised Face DIN 2633 PN16 Weld Neck Flange Manufacturer |
| DIN 2633 PN16 Weld Neck Flange Manufacturer | Flat Face DIN 2633 PN16 Weld Neck Flange Manufacturer |
| 30 inch DIN 2633 PN16 Weld Neck Flange Dealer | Raised Face DIN 2633 PN16 Weld Neck Flanges Manufacturer |
| DIN 2633 PN16 Weld Neck Pipe Flanges Wholesaler | DIN 2633 PN16 WNRF Flanges Supplier |
| DIN 2633 PN16 WNRF Flange Stockist in Ethiopia | Raised Faced DIN 2633 PN16 Slip-On flanges Dealer in Ethiopia |
| Raised Face DIN 2633 PN16 Weld Neck Plate Flanges | Titanium DIN 2633 PN16 Welding Neck Flanges |
| 18 inch DIN 2633 PN16 Carbon Steel Weld Neck Flange | DIN 2633 PN16 Weld Neck Flange Dimensions in mm |
| DIN 2633 PN16 WNRF Flanges Supplier in Addis Ababa | Alloy Steel DIN 2633 PN16 Weld Neck Flanges Manufacturer in Ethiopia |
| Nickel Alloy DIN 2633 PN16 Welding Neck Flange | Mild Steel DIN 2633 PN16 Weld Neck Flange |
| Alloy Steel DIN 2633 PN16 Welding Neck Flanges | Copper Nickel DIN 2633 PN16 Weld Neck Flanges at Best Price |
| DIN 2633 PN16 Welding Neck FF Flange Supplier | Suppliers of DIN 2633 PN16 Weld Neck Flange |
| DIN 2633 PN16 WNRF Flanges Distributor in Adama | Flat Face DIN 2633 PN16 Weld Neck Flanges Exporter |
| DIN 2633 PN16 Welding Neck Flanges Supplier in Dire Dawa | MS DIN 2633 PN16 Weld Neck Flange |
| DIN 2633 PN16 Large Diameter Weld Neck Flange | 30 Inch DIN 2633 PN16 Weld Neck Pipe Flange Dimensions |
| 8 Inch DIN 2633 PN16 Welding Neck Pipe Flanges | DIN 2633 PN16 Weld Neck Flanges Stockist |
| Carbon Steel Raised Face DIN 2633 PN16 Weld Neck Flange Stockist | Duplex Steel DIN 2633 PN16 WNRF Flanges Supplier in Addis Ababa |
| ASME SA105N Raised Faced DIN 2633 PN16 Weld Neck Flanges | 18 inch Carbon Steel DIN 2633 PN16 Weld Neck Flange |
| Carbon Steel DIN 2633 PN16 Welding Neck Flange | DIN 2633 PN16 Weld Neck RF Flange Supplier |
| DIN 2633 PN16 Weld Neck Pipe Flanges Supplier in Mek’ele | Duplex Steel DIN 2633 PN16 Weld Neck Flanges |
| 4 inch Stainless Steel DIN 2633 PN16 Weld Neck Flange | DIN 2633 PN16 Weld Neck RF Flanges Stockholder |
| Stainless Steel DIN 2633 PN16 Weld Neck Flange | ASTM B564 Raised Faced DIN 2633 PN16 Weld Neck Flanges |
| DIN 2633 PN16 WNRF Flange Exporter | DIN 2633 PN16 Weld Neck Flange Pressure Ratings |
| German Standard DIN 2633 PN16 Weld Neck Flanges | DIN 2633 PN16 Weld Neck Flange Supplier in Ethiopia |
We are renowned for delivering products with precise, accurate dimensions. Each product undergoes thorough testing, both destructive and non-destructive, to ensure quality before being shipped to our customers.
