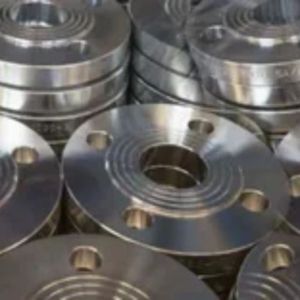

Nestled in the heart of Addis Ababa, Gugsa Flanges stands as a trusted partner for industries across Ethiopia, dedicated to providing robust and reliable solutions for critical piping systems. Our commitment to quality is perfectly exemplified by the C22.8 flange, a component we manufacture and supply with precision and care. We understand that the integrity of your operations depends on the strength of every connection, which is why we ensure our flanges meet the highest standards, supporting the nation’s growing infrastructure with dependable, locally-produced engineering products.
The C22.8 flange is crafted from a specific non-alloy quality steel known for its excellent balance of strength and versatility. Its chemical composition is carefully controlled to provide dependable mechanical properties, including a specified minimum yield strength that ensures it can handle significant pressure and load. This particular grade offers good weldability and machinability, making it a practical and efficient choice for fabricators who need a material that performs consistently under a range of demanding industrial conditions without being overly complex.

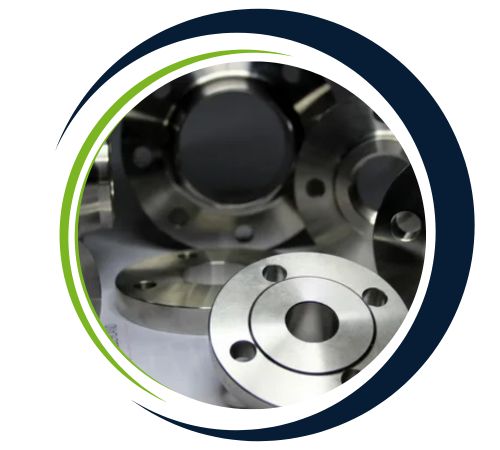

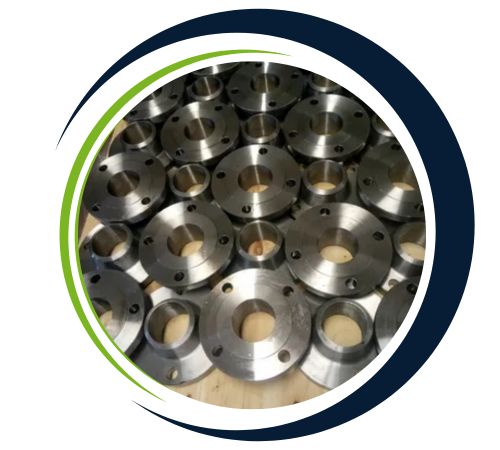

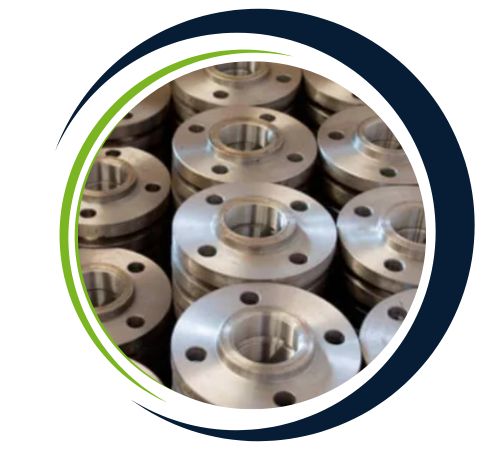

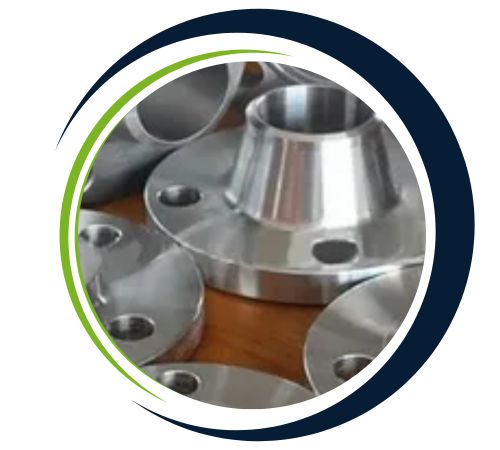

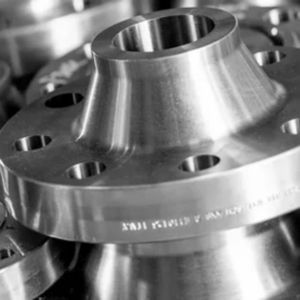

Gugsa Flanges, a leading supplier in Addis Ababa, Ethiopia, offers an extensive selection of C22.8 Flange, including weld neck flanges, slip-on flanges, blind flanges, threaded flanges, and lap joint flanges. Designed for diverse industrial applications, our high-quality inventory and commitment to exceptional service make us a trusted choice for flange products in the region.
| Specifications | C22.8 |
| ASME B16.5 Carbon Steel C22.8 Flanges size range | 1/2″ (15 NB) to 48″ (1200NB) DN10~DN5000 |

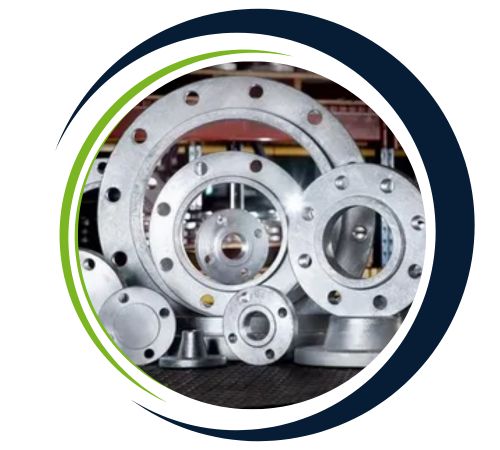

| Carbon Steel C22.8 Flanges Standards | ANSI/ASME B16.5, B16.48, BS4504, B16.47 Series A & B, EN-1092, BS 10, DIN, ASME Flanges, ANSI Flanges, DIN Flanges, BS Flanges, GOST Flanges,EN Flanges |
| Carbon Steel C22.8 Flanges Standard DIN | 6Bar 10Bar 16Bar 25Bar 40Bar / PN6 PN10 PN16 PN25 PN40, PN64 |
| Carbon Steel C22.8 Flanges Standard ANSI | Class 150 LBS, 300 LBS, 600 LBS, 900 LBS, 1500 LBS, 2500 LBS |
| Carbon Steel C22.8 Flanges Standard UNI | 6Bar 10Bar 16Bar 25Bar 40Bar |
| Carbon Steel C22.8 Flanges Standard JIS | 5K, 10 K, 16 K 20 K, 30 K, 40 K, 63 K |
| Carbon Steel C22.8 Flanges Standard EN | 6Bar 10Bar 16Bar 25Bar 40Bar |
| Main Types | Forged / Threaded / Screwed / Plate |
| Flange supporting material | Gasket, Ring Joint, Flange Bolts |
| Element / Component | Composition % |
| Carbon ( C ) | 0.18 – 0.23 |
| Manganese ( Mn ) | 0.40 – 0.90 |
| Phosphorus ( P ) | 0.035 max |
| Sulphur ( S ) | 0.030 max |
| Silicon ( Si ) | 0.40 max |
| Aluminium ( Al ) | 0.015 – 0.050 |
| Chromium ( Cr ) | 0.30 max |
| Items | Value |
| Yield Strength ReH N/mm2 | 240 min |
| Tensile Strength Rm N/mm2 | 410 – 540 |
| Elongation ( A ) | 25% min |
| Impact Test ( J ) | 44 min |
The C22.8 flange is widely used in severe industries owing to its excellent corrosion resistance, high strength, and longevity. It is found in petroleum and gas, petrochemical, and marine applications and is used in pipelines, pressure vessels, and heat exchangers where high pressure and high-temperature conditions are encountered. It is suitable for chemical process applications because of its resistance to acidic environments. The C22.8 flange is also used in power plants, desalination plants, and refineries, offering safe and durable connections in systems handling corrosive fluids and high-temperature applications. Its performance and reliability make it a choice of preference for mission-critical infrastructure.
Yes, we offer custom sizes for C22.8 Flange to meet specific project needs. Our team at Gugsa Flanges is committed to providing tailored solutions for all your requirements. For more details, contact us at sales@gugsaflanges.com.
We are renowned for delivering products with precise, accurate dimensions. Each product undergoes thorough testing, both destructive and non-destructive, to ensure quality before being shipped to our customers.
Our team is ready to assist you. Contact us for any queries or personalized solutions.
