Welcome to the world of robust industrial solutions with Gugsa Flanges, your trusted partner in Addis Ababa. As a premier manufacturer and supplier, we take immense pride in delivering high-quality components built to withstand the demanding environments of Ethiopian industry. Our SS400 Flange is a testament to this commitment, engineered to provide exceptional strength and reliability for a wide range of piping systems, ensuring your projects are supported by both local expertise and internationally recognized standards.

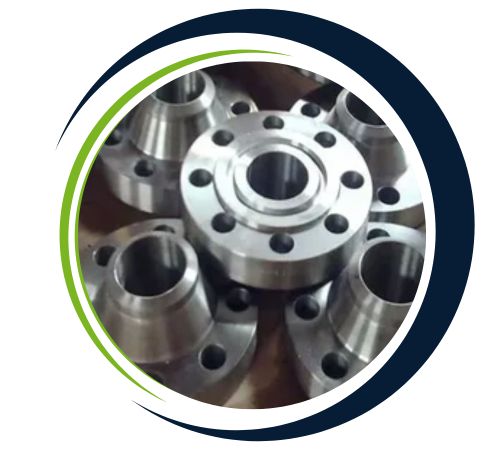

The SS400 Flange is crafted from a carbon steel composition prized for its excellent balance of strength and workability. Its defining mechanical properties include a notable yield strength that guarantees structural integrity under high pressure, along with impressive toughness that resists impact and wear. This combination makes it a go-to material for fabricators who need a flange that can handle significant stress without compromising on performance, offering a durable and cost-effective solution for critical connections.

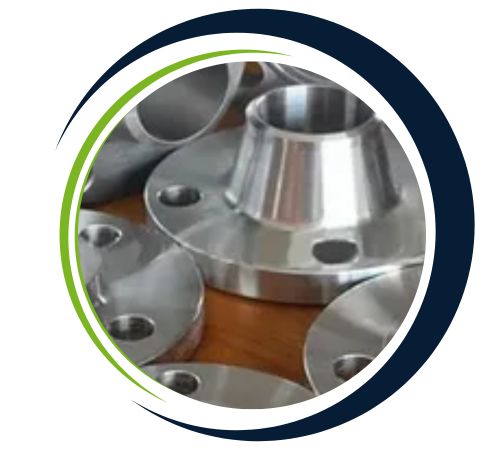

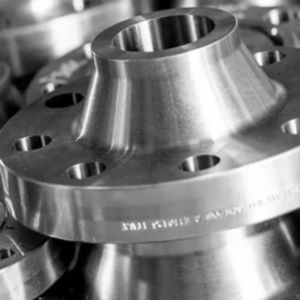

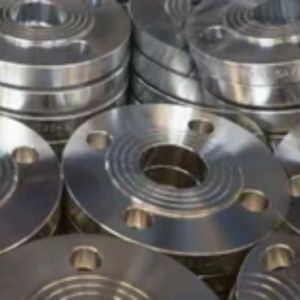

Gugsa Flanges, a leading supplier in Addis Ababa, Ethiopia, offers an extensive selection of SS400 Flanges, including weld neck flanges, slip-on flanges, blind flanges, threaded flanges, and lap joint flanges. Designed for diverse industrial applications, our high-quality inventory and commitment to exceptional service make us a trusted choice for flange products in the region.
| Specifications | ASTM SS400 and ASME SS400 |
|---|---|
| ASME B16.5 Carbon Steel SS400 Flanges size range | 1/2″ (15 NB) to 48″ (1200NB) DN10~DN5000 |
| Carbon Steel SS400 Flanges Standards | ANSI/ASME B16.5, B16.48, BS4504, B16.47 Series A & B, EN-1092, BS 10, DIN, ASME Flanges, ANSI Flanges, DIN Flanges, BS Flanges, GOST Flanges,EN Flanges |
| Carbon Steel SS400 Flanges Standard DIN | 6Bar 10Bar 16Bar 25Bar 40Bar / PN6 PN10 PN16 PN25 PN40, PN64 |
| Carbon Steel SS400 Flanges Standard ANSI | Class 150 LBS, 300 LBS, 600 LBS, 900 LBS, 1500 LBS, 2500 LBS |
| Carbon Steel SS400 Flanges Standard UNI | 6Bar 10Bar 16Bar 25Bar 40Bar |
| Carbon Steel SS400 Flanges Standard JIS | 5K, 10 K, 16 K 20 K, 30 K, 40 K, 63 K |
| Carbon Steel SS400 Flanges Standard EN | 6Bar 10Bar 16Bar 25Bar 40Bar |
| Main Types | Forged / Threaded / Screwed / Plate |
| Flange supporting material | Gasket, Ring Joint, Flange Bolts |
| Carbon Steel SS400 Pipe Flanges Test Certificates | EN 10204/3.1B Raw Materials Certificate 100% Radiography Test Report Third Party Inspection Report, etc |
| Production technique |
|
| Connect Type/ Flange Face Type | Ring Type Joint (RTJ), Raised Face (RF), Large Male-Female (LMF), Flat Face (FF), Lap-Joint Face (LJF), Male-Female (SMF), Small Tongue & Groove, Large Tongue & Groove |
| Most common types of Carbon Steel SS400 Flanges |
|
| Special design | As per your drawing AS, ANSI, BS, DIN and JIS 15 NB (1/2″) to 200 NB (8″) Equal and Reducing Configurations Carbon Steel SS400 Flanges Threaded Flanges, Socketweld Flanges, Slip-On Flanges, Blind Flanges, Weld Neck Flanges |
| Test | Direct-reading Spectrograph, Hydrostatic testing machine, X-ray detector, UI trasonic flaw detector, Magnetic particle detector |
| Origin | Indian / West Europe / Japan / USA / Korean |
| Equipment | Press machine, Bending machine, Pushing Machine, electric bevelling machine, Sand-blasting machine etc |
| Specialized manufacturer of |
|
|
Element |
Weight % |
|
Carbon |
0.08 – 0.15 |
|
Silicon |
0.15 – 0.50 |
|
Manganese |
0.30 – 0.60 |
|
Phosphorus |
0.025 max * |
|
Sulphur |
0.025 max * |
|
Molybdenum |
0.90 – 1.10 |
|
Chromium |
2.00 – 2.50 |
|
Nickel |
0.5 max |
Property | Values |
Ultimate Tensile Strength * | 95 min Ksi (655 Mpa) |
0.2 % Yield Strength * | 75 min Ksi (517 Mpa) |
Elongation * | 17 % min |
Reduction of Area * | 35 % min |
Charpy Impact Toughness | 42 mean/ 33 min J at –18o C |
Hardness | 197 – 237 BHN (75 Ksi min) |
SS400 flanges are widely used in various industrial applications due to their excellent strength, weldability, and cost-effectiveness. Commonly found in construction, piping systems, and machinery, these flanges are ideal for joining pipes, valves, and other components. They are used in water treatment plants, oil and gas pipelines, and HVAC systems, offering reliable sealing and pressure resistance. SS400 flanges are also employed in the automotive and shipbuilding industries, providing durability in high-stress environments. Their resistance to corrosion and ease of fabrication make them versatile for diverse engineering projects.
Yes, we offer custom sizes for SS400 Flanges to meet specific project needs. Our team at Gugsa Flanges is committed to providing tailored solutions for all your requirements. For more details, contact us at sales@gugsaflanges.com.
We are renowned for delivering products with precise, accurate dimensions. Each product undergoes thorough testing, both destructive and non-destructive, to ensure quality before being shipped to our customers.
