Nestled in the heart of Addis Ababa’s expanding industrial sector, Gugsa Flanges stands as a dedicated manufacturer and trusted supplier for the nation’s growth. We understand that the backbone of any robust infrastructure is reliable components, which is why we focus on producing high-quality flanges like the S235JRG2. Our commitment is to provide strong, durable connections that meet the exacting standards of Ethiopian projects, ensuring that every pipeline and structural system we supply is built to last and perform under local conditions.
When we talk about the S235JRG2 flange, we’re referring to a product defined by its dependable composition and strength. This grade is a non-alloy quality steel, primarily composed of iron and carbon, with carefully controlled levels of phosphorus and sulfur to ensure good weldability and toughness. Mechanically, it offers a minimum yield strength of 235 MPa, which means it can withstand significant pressure and load without deforming. This combination of a straightforward, reliable makeup and proven mechanical performance makes it a consistently safe and practical choice for a wide array of projects.

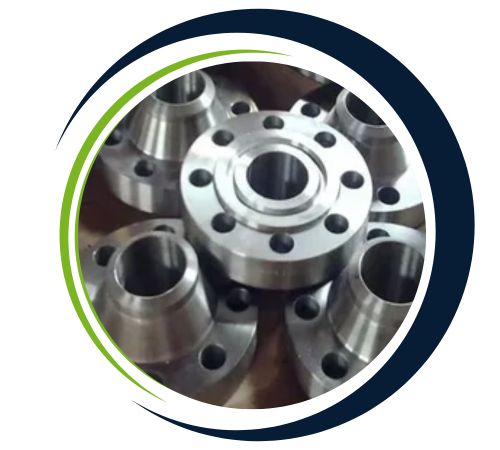

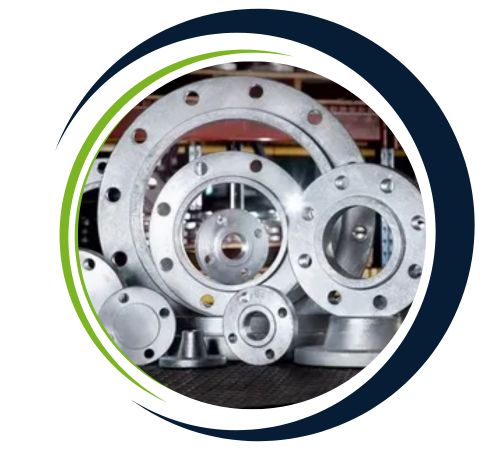

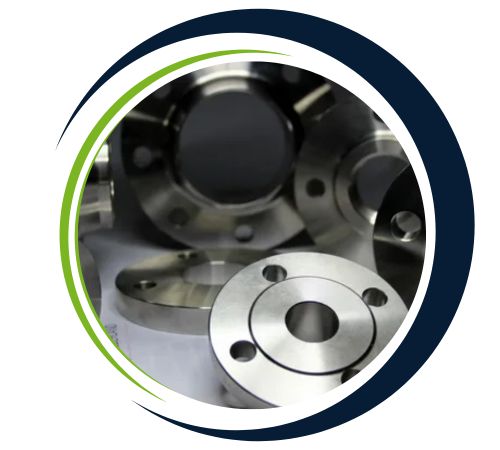

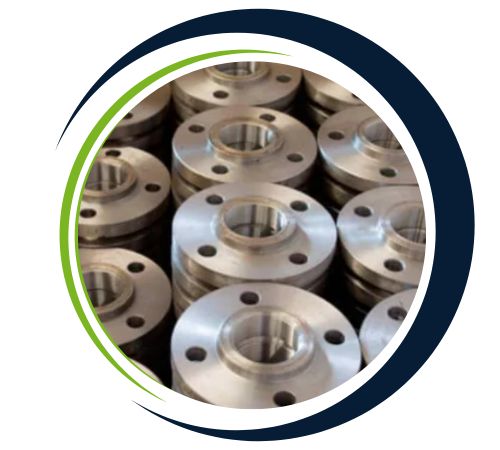

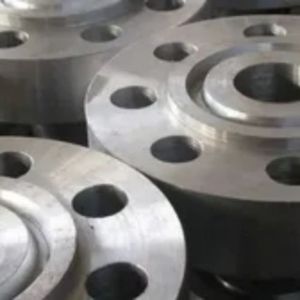

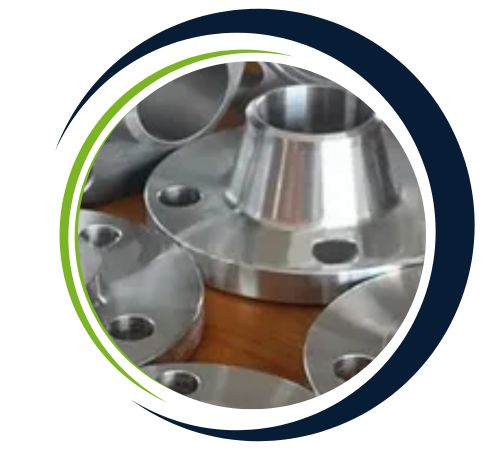

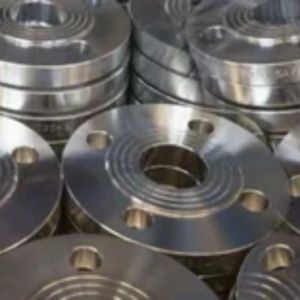

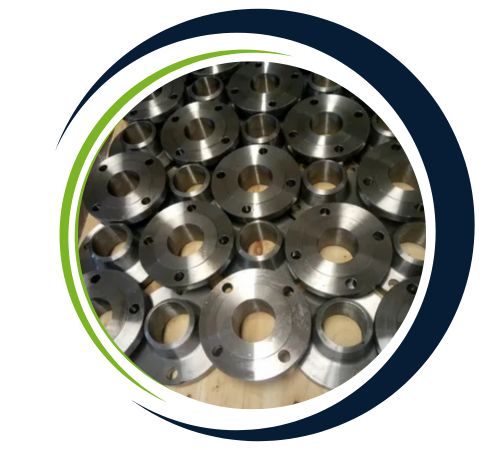

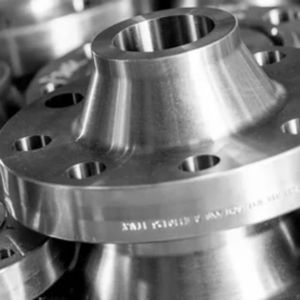

Gugsa Flanges, a leading supplier in Addis Ababa, Ethiopia, offers an extensive selection of S235jrg2 Flange, including weld neck flanges, slip-on flanges, blind flanges, threaded flanges, and lap joint flanges. Designed for diverse industrial applications, our high-quality inventory and commitment to exceptional service make us a trusted choice for flange products in the region.
| Size Chart | 1/2″ (15 NB) to 48″ (1200NB) DN10~DN5000 |
| Standards | API7S-15, API7S-43, API605, ANSI/ASME B16.5, B16.47 Series A & B, B16.48, ASME Flanges, BS Flanges, DIN Flanges, EN Flanges, BS4504, BS 10, EN-1092, DIN, ANSI Flanges, GOST Flange, ASME/ANSI B16.5/16.36/16.47A/16.47B, MSS S44, ISO70051, JISB2220, BS1560-3.1, EN1092 |
| Pressure Rating ANSI | 600 LBS, 900 LBS, 150 LBS, 2500 LBS, 300 LBS, 1500 LBS |
| Pressure Calculation in DIN | 16Bar 6Bar 25Bar 40Bar 10Bar / PN10 PN16 PN6 PN25 PN64 PN40 |
| JIS | 5K, 10 K, 16 K 20 K, 30 K, 40 K, 63 K |
| UNI | 6Bar 10Bar 16Bar 25Bar 40Bar |
| EN | 6Bar 10Bar 16Bar 25Bar 40Bar |
| Coating | Anti-rust Paint, Zinc Plated,Oil Black Paint, Cold and Hot Dip Galvanized, Yellow Transparent |
| Most common types | Forged / Threaded / Screwed / Plate |
| C | Si | Mn | Ni | P | S | Cr | Mo | Al | – |
| max 0.2 | max 0.55 | max 1.4 | max 0.3 | max 0.045 | max 0.045 | max 0.3 | max 0.08 | min 0.02 | Cr+Mo+Ni < 0.48 |
| Minimum yield strength Reh MPa | Tensile strength Rm MPa | Minimum elongation – A Lo = 5,65 * √So (%) | Notch impact test | |||||||||||
| Steel grade | Nominal thickness mm | Nominal thickness mm | Nominal thickness mm | Temperature | Min. absorbed energy | |||||||||
| ≤16 | >16 ≤40 | >40 ≤63 | >63 ≤80 | >80 ≤100 | >100 ≤125 | >3 ≤100 | >100 ≤125 | >3 ≤40 | >40 ≤63 | >63 ≤100 | >100 ≤125 | °C | J | |
| S235JR | 235 | 225 | 215 | 195 | 360-510 | 350-500 | 26 | 25 | 24 | 22 | +20 | 27 | ||
The S235JRG2 flange is widely used across construction, structural engineering, and pipeline projects due to its excellent weldability, durability, and strength. It serves as a reliable connection point in piping systems, enabling secure joins between pipes, valves, and other equipment. In structural applications, it’s commonly used in frameworks, bridges, and building structures. Its compatibility with EN 10025 standards makes it suitable for both low-stress and moderate-stress environments, particularly in industries like oil and gas, water treatment, and general construction where dependable performance is essential.
Yes, we offer custom sizes for S235jrg2 Flange to meet specific project needs. Our team at Gugsa Flanges is committed to providing tailored solutions for all your requirements. For more details, contact us at sales@gugsaflanges.com.
We are renowned for delivering products with precise, accurate dimensions. Each product undergoes thorough testing, both destructive and non-destructive, to ensure quality before being shipped to our customers.
Our team is ready to assist you. Contact us for any queries or personalized solutions.
